Hermetically Sealed Thermocouple Sensors

Description

The TWHS Hermetically sealed sensors offer a simple, easy to use solution for applications where the sensing junction needs to be protected from electrical interference or protected from moisture/liquids.

As standard the sensors are tested for electrical insulation at 1.0Kv. On request the sensors can be tested at higher voltages.

The PFA is temperature rated -100…+260ºC making it suitable for a wide range of applications. The insulation is easily cleaned and suitable for sterilisation.

The sensors are available in Thermocouple Types K, J & T. They can be supplied with standard tails or miniature thermocouple plug terminations.

This product can be supplied with a calibration certificate.

Features

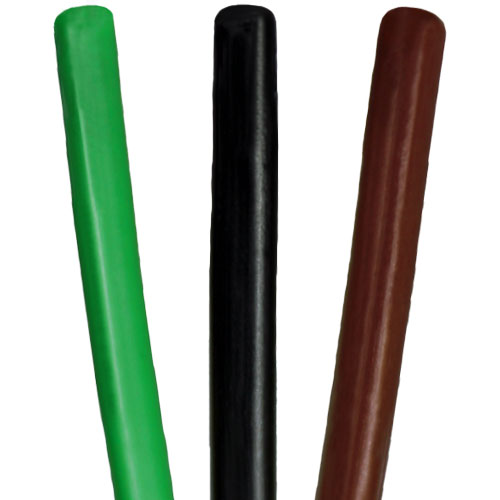

Hermetically Sealed Tip – simple & easy to use
Available as Thermocouple Type K, J & T
Suitable for insertion into liquids, including oil
PFA Insulation, Oil & Chemical Resistant
Suitable for use in temperatures ranging from -100…+260ºC
Electrically Insulated tip, 1.0Kv (can be tested at higher voltages)
Flexible 7/0.2mm diameter 24 AWG conductor
Available with standard tails or miniature thermocouple plug terminations

Bespoke Options

This product can be custom-made and/or configured to your requirements using the options below. Each option has a code that is used to construct a final order code. An example order code is included.

Item	Options	Code
Sensor Type	Hermetically Sealed Thermocouple Sensor	TWHS
Conductor/Thermocouple Type	Type K	K
	Type J	J
	Type T	T
Cable Length (mm)	As required to suit your application (5000mm max)	e.g. 2000
Optional Cable Termination (supplied as standard with tails)	Miniature Thermocouple Plug	FMP
