Welded Tip Fast Response Thermocouple Sensors for Autoclave & Steriliser Applications

Product Code: TW

Welded tip sensors manufactured from PTFE insulated cable in a single-shot construction. The single-shot construction prevents leakage / wicking caused by capillary action.

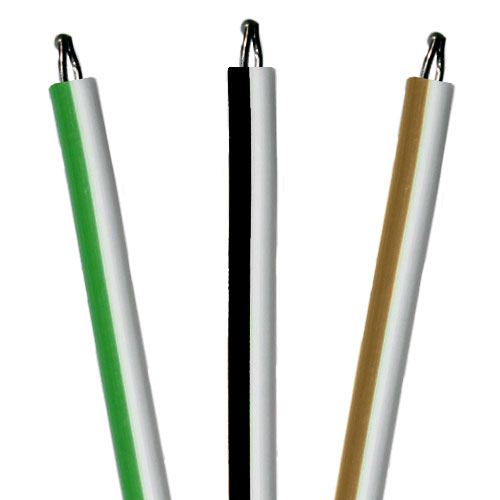

Ideal for use in composite autoclaves and steriliser applications. The two thermocouple wires are welded at the tip to form an exposed thermocouple junction which gives a fast speed of response.

The sensors can be supplied in any length to suit your application, commonly supplied with a miniature or standard plug or socket attached for easy, quick connections.

Cable construction: Single pair of solid 1/0.376mm diameter conductors. The wire is laid flat and PTFE extruded in a single shot construction. Provides a gas, steam and water-tight insulation.

  • Features
  • Options
  • Documents
  • Software
    • Temperature rated -75°C to +250°C
    • Available In Thermocouple Types K, J, T
    • Single shot construction prevents leakage / wicking caused by capillary action
    • Colour coded as standard to IEC 60584.3 (BS EN 60584.3). ANSI MC96.1 colours available on request
    • Available with bare wire tails, plug or socket end termination
    • The insulation is very flexible and resistant to most known chemicals, fluids and oils
  • Item Code
    Sensor Type Welded Tip Fast Response Thermocouple Sensor TW
    Conductor/Thermocouple Type   Type K K
    Type J  J
    Type T  T
    Cable Insulation PTFE (Single Shot) (-75°C to +250°C) A
    Conductor Diameter 0.376mm 4
    Cable Length (mm) As required to suit your application e.g. 2000

    Optional Thermocouple Connector

    (supplied attached to cable)

    Not required NR
    Miniature Thermocouple Plug FMP
    Miniature Thermocouple Socket FMJ
    Standard Thermocouple Plug RSP
    Standard Thermocouple Socket RSJ



    Order Code (example): TW-K T 3-2000-FMP
