Self Adhesive Thermocouple Attachment Pads

Product Code: TW-PATCH

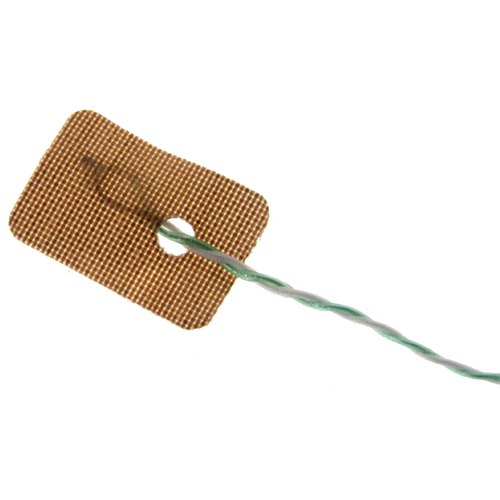

Self adhesive Thermocouple attachment pads. Designed for attaching small diameter thermocouples to a variety of surfaces for continuous temperature measurement.

Temperature range -75°C to +260°C.

Manufactured from 0.120mm standard grade PTFE impregnated fibreglass with 0.050mm of high temperature silicone pressure sensitive adhesive. This product is almost chemically inert. Only molten alkali metals and fluorine under elevated temperatures and pressure will attack the PTFE surface. The fibreglass provides dimensional stability and restricts PTFE cold flow. The PTFE provides a non-stick/quick release surface in heat-sealing machines, plastic bag manufacturing and roll-can covering.

Patch dimensions: 17mm (L) x 12mm (W) x 2.7mm (punched hole diameter)

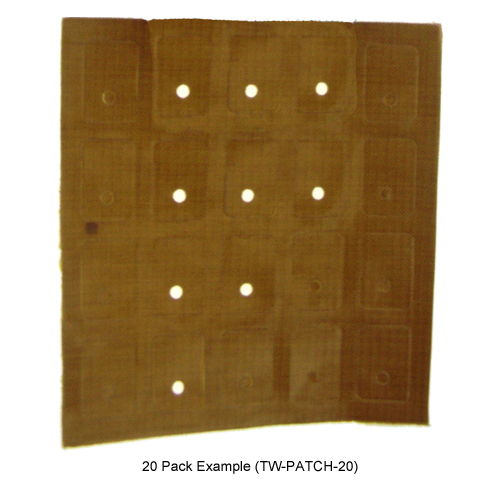

Available in packs of 20 or 100 self adhesive pads.

  • Features
  • Technical
  • Options
  • Documents
  • Software
    • Designed for attaching small diameter thermocouples to surfaces
    • Excellent chemical resistance
    • Fibreglass offers dimensional stability
    • High temperature range (-75°C to +260°C)
    • Non-stick smooth PTFE surface
    • Available in packs of 20 and 100
    • Patch dimensions: 12mm (W) x 17mm (L) x 2.7mm (punched hole diameter)
  • Technical Details
    Adhesion 45 oz/in width
    Break strength 120 lbs/in width
    Elongation < 5%
    Backing thickness 0.120mm
    Adhesive thickness 0.050mm
    Temperature Range -75°C to +260°C
  • Temperature Range Pack Size Order Code
    -75°C to +260°C 20 TW-PATCH-20
    100 TW-PATCH-100
  • No software available

Note: thermocouple sensor available separately (not supplied)
