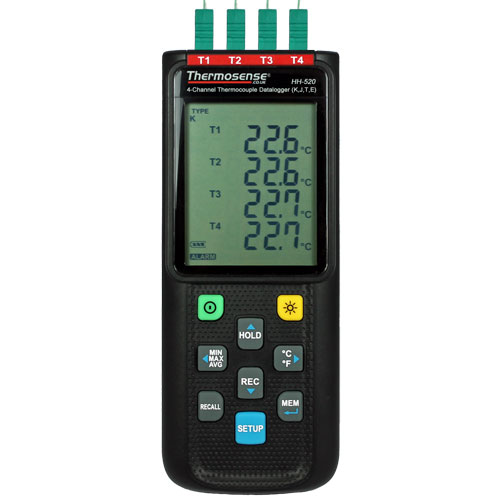

4 Channel Thermocouple Data Logger

Product Code: HH-520

Easy to use, high accuracy, hand-held thermocouple data logger with four input channels. Powered by batteries or USB.

Simply connect your thermocouple sensor(s) using a miniature flat-pinned plug. Selectable between thermocouple inputs K, J, T and E.

All four input channels are shown on the screen at once, identified as T1, T2, T3 and T4, with the ability to also show T1-T2 differential.

The data logger can store/recall up to 100 manual data logging 'spot' readings, or over 16,000 readings per channel in automatic logging mode. An alarm on channel 1 (T1) can be configured to audibly alert if the temperature exceeds a high or low limit.

Install the free Windows software on a PC and connect to the data logger using the supplied USB cable. The software can retrieve historical logged data or perform real-time logging on-screen; data can be printed, graphed and exported in .csv, .txt or .ghf format (.ghf format for use only with the software). Exported files can be loaded into the software or other applications such as Microsoft® Excel.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
    • 4 thermocouple input channels (accepts types K, J, T, E)
    • 16,000 points per channel; 100 sets of manually saved data
    • High accuracy, fast response, selectable sampling rate
    • T1, T2, T3, T4 and T1-T2
    • °C / °F selectable
    • Backlit LCD display, integrated tilt stand
    • Min, Max, Avg, Hold, Mem, Recall, Offset, Setup, Temp. Unit, Alarm (T1)
    • Battery or USB powered, auto power off / low battery indicator
    • Free Windows software for real-time logging or historical data retrieval
    • Supplied with carry case, instruction manual, batteries, software and micro USB cable
    Data Logger Programmable Features

    Data Logger Programmable Features

    • Set Thermocouple Type (K,J,T,E)
    • Set sample rate seconds (00:01 - 60:59)
    • Set offset (all 4 channels)
    • Set alarm (T1 only)
    • Set T1-T2 on/off
    • Set auto power off time (10 min, 30 min, 1, 2, 4, 8 hours)
    • Set system clock (date/time)
    Free PC Software Features

    Free PC Software Features

    • Connect data logger via USB
    • View data as text or graph
    • Perform real time logging
    • Load manually saved data from data logger
    • Save/load real time data (export as .csv, .txt, .ghf)
    • PANEL simulates data logger and displays real time data
    • Control data logger using the “PANEL” display
    • Set sample rate
  • Technical Details
    Input (miniature plug) * 4 x Thermocouple

    Measurement

    Range

    K -200°C to +1372°C (-328°F to +2501°F)
    J -200°C to +1000°C (-328°F to +1832°F)
    T -200°C to +400°C (-328°F to +752°F)
    E -200°C to +750°C (-328°F to +1382°F)
    Accuracy **   ±(0.1% of reading +0.7°C) ±(0.1% of reading +1.4°F)
    Below -100°C (-148°F):
    ±(0.4% of reading +0.7°C) ±(0.4% of reading +1.4°F)
    Resolution 0.1°C < 600°C / 0.1°F < 1000°F, 1°C ≥ 600°C / 1°F ≥ 1000°F
    Temperature Coefficient 0.01% of reading +0.05°C (0.0028°F) per °C [<18°C (64°F) or > 28°C (82°F)]
    Manual Logging Capacity 100 readings
    Auto Logging Capacity 16,000 readings per channel
    Sample Rate 2 times per second
    Display Backlit LCD display
    Functions Min, Max, Avg, Hold, Mem, Recall, Offset, Setup, Temp. Unit, Alarm (T1), Auto Off, Low Battery
    Operating Temperature 0°C to +50°C (+32°F to +122°F)
    Operating Humidity 10 to 90 %RH (no condensing)
    Storage Temperature -20°C to +60°C (-4°F to +140°F)
    Storage Humidity 10 to 75 %RH
    Power 4 x 1.5V AAA batteries or via USB
    Battery Life (alkaline) Approximately 100 hours
    Dimensions 187mm (L) x 75mm (W) x 29mm (H)
    Weight    ~308g with batteries
    ~263g without batteries



    * Thermocouple sensor(s) not supplied - available separately

    ** Accuracy stated is for indicator only. The thermocouple sensor innacuracy should also be considered

  • Free HH-520 PC Software

    Free HH-520 PC Software

    Compatible with Microsoft Windows XP, Vista, 7, 8 and 10
