Ceramic Sheathed Thermocouple Sensor with Standard Head

Product Code: TCR

Commonly used in high temperature applications where standard metal sheaths cannot withstand the heat.

The ceramic sheath can be supplied as Impervious Aluminous Porcelain (AP) which is suitable for use up to +1400°C, or Impervious Recrystallised Alumina (RA) which is suitable for use up to +1700°C. Both sheaths, being ceramic, are relatively fragile and can be damaged by thermal shock if not pre-heated before insertion into high temperature applications.

Sheaths can be supplied as 10.0mm, 12.0mm, 17.0mm or 20.0 diameter and are glued into a metal support tube onto which the terminal head is connected. The length of the ceramic sensor and support tube can be manufactured to suit the application.

The TCR is supplied with an IP67 rated heavy duty die cast alloy terminal head (M20 x 1.5mm cable entry thread). The screw top lid has a robust chain ensuring it remains attached to the head. A ceramic terminal block inside the head makes connections to the extension cable very simple. The sensor can also be supplied with a linearised 4~20mA transmitter which can be pre-ranged to suit your requirements.

  • Features
  • Options
  • Documents
    • 10.0mm, 12.0mm, 17.0mm or 20.0mm Ø ceramic probe
    • Terminated with IP67 rated heavy-duty die cast alloy head (M20 cable entry)
    • Accuracy to IEC 60584.2 Class 1 or Class 2
    • Colour coded terminals, IEC 60584.3 (BS EN 60584.3)
  • Item Code
    Sensor Type Ceramic Sheathed Thermocouple Sensor with Standard Head TCR
    Conductor/Thermocouple Type Type K K
    Type J J
    Type T T
    Type N N
    Type E E
    Type R R
    Type S S
    Ceramic Material Impervious Aluminous Porcelain (0°C to +1400°C) AP
    Impervious Recrystallised Alumina (0°C to +1700°C) RA
    Probe Diameter (D1) 10.0mm (15.8mm Support Tube Diameter (D2)) 10.0
    12.0mm (21.3mm Support Tube Diameter (D2)) 12.0
    17.0mm (26.9mm Support Tube Diameter (D2)) 17.0
    20.0mm (26.9mm Support Tube Diameter (D2)) 20.0
    Sensing Junction  Insulated (isolated, ungrounded), Simplex I
    Insulated (isolated, ungrounded), Duplex  2I
    Probe Length (mm) (L1) As required to suit your application e.g. 300

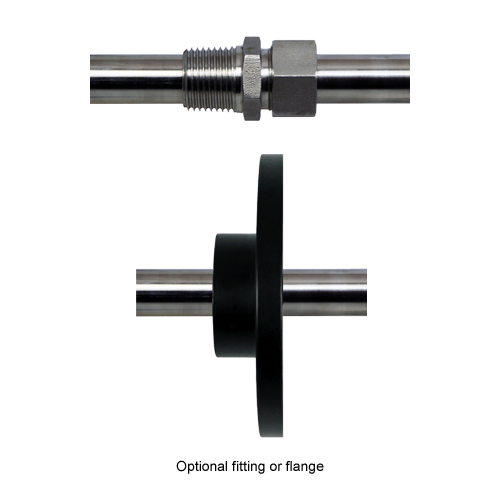

    Optional 316 Stainless Steel Compression Fitting (to suit probe diameter) *

    Add suffix to code: ES for 1/2", GS for 3/4" (e.g. CF158ES)

    15.8mm (1/2" BSPT, 3/4" BSPT) CF158
    21.3mm (3/4" BSPT) CF213

    Optional Mild Steel Flange (to suit probe diameter) *

    (4", 101mm, black, powder coated)

    15.8mm FL15
    21.3mm FL21
    26.9mm FL26
    Optional Head Mounting 4~20mA Transmitter

    Linearised, head mounting 4~20mA transmitter, 24VDC power supply, non-isolated. Replaces ceramic terminal block (pre-ranged to suit your requirements).

    ATEX versions also available.

    TXHU (range)


    TXHU (0/200°C)


    * Can choose an optional compression fitting OR a mild steel flange (not both)


    Order Code (example): TCR-R-RA-10.0-I-300-CF158ES-TXHU (0/200°C)

  • No software available
