Pipe Surface Thermocouple Sensor

Product Code: TPI

The curved surface aluminium bodied sensors are specifically designed for mounting onto the surface of a pipe. The pipe temperature can be used to identify whether the product or medium is flowing.

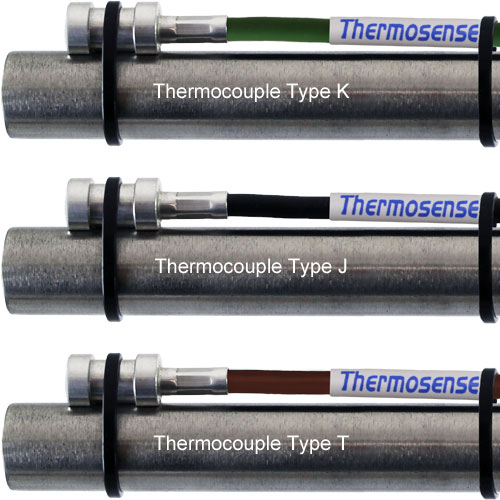

Available as Type K, J or T Thermocouple types, Simplex with an insulated or grounded junction. The extension cable has flexible 7/0.2mm diameter PFA insulated conductors, which are twisted then Silicone Rubber sheathed. Suitable for use between temperatures of -30…+200°C.

The aluminium body ensures optimal heat transfer from the pipe surface to the measuring element. The thermal conductivity is approximately twice as good as brass and much better than stainless steel. The sensor is compact which results in minimal heat dissipation. The curved sensor suits a wide range of pipe diameters, from 12mm up to 30mm.

The sensors are easy to install: simply strap to the pipe using plastic cable ties, worm-drive hose clips or metal straps (application dependent). It is generally advised to insulate / lag over the sensor to reduce the effect of the ambient temperature on the sensor readings.

  • Features
  • Options
  • Documents
  • Software
    • Aluminium tip for fast response
    • Thermocouple Types K, J, T
    • Suits pipe diameters 12…30mm
    • Easy to install
  • Item Code
    Sensor Type Pipe Surface Thermocouple Sensor TPI
    Conductor/Thermocouple Type Type K K
    Type J J
    Type T T
    Sensing Junction Insulated (isolated, ungrounded), Simplex I
    Grounded (non-isolated), Simplex G
    Extension Cable Length (mm) (L1) As required to suit your application e.g. 2000

    Optional Thermocouple Connector

    (supplied attached to cable)

    Miniature Thermocouple Plug (Types K, J, T) FMP
    Standard Thermocouple Plug (Types K, J, T) RSP



    Order Code (example): TPI-K-I-2000
