PFA Insulated, Screened RTD Cable

Description

A selection of extension cable for use with RTD sensors.

Multi cores of stranded 7/0.2mm diameter conductors. Each conductor is extruded PFA insulated and sheathed (black). The cores are twisted together and tinned copper wire braid screened.

Temperature rated -75°C to +260°C.

This product can be supplied with a calibration certificate.

Features

Temperature rated -75°C to +260°C
Suitable for use with Platinum Resistance Thermometers (Pt100, Pt130, Pt500, Pt1000) and Nickel Resistance Thermometers
Available as 2-Wire, 3-Wire, 4-Wire, 6-Wire (for duplex 3-wire) and 8-Wire (for duplex 4-wire)
Colour coded cores for easy identification
Supplied with a stranded 7/0.2mm diameter tinned copper conductor as standard

Bespoke Options

This product can be custom-made and/or configured to your requirements using the options below. Each option has a code that is used to construct a final order code. An example order code is included.

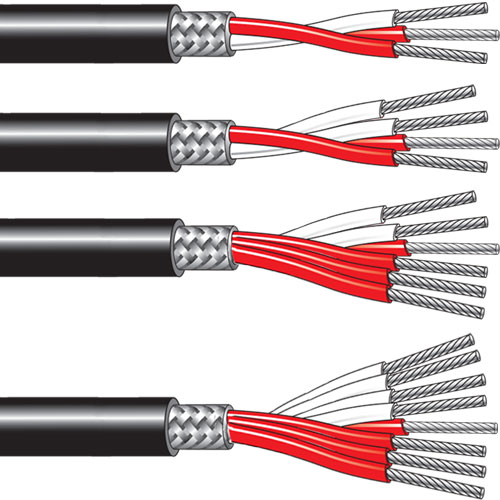

Screen	No. of Cores	Dimensions (approximate)	Core Colours	Code
Tinned copper wire braid	3	3.0mm	2 x Red, 1 x White	PT5320
Tinned copper wire braid	4	3.5mm	2 x Red, 2 x White	PT5420
Tinned copper wire braid	6	4.0mm	4 x Red, 2 x White	PT5620
Tinned copper wire braid	8	4.5mm	4 x Red, 4 x White	PT5820
