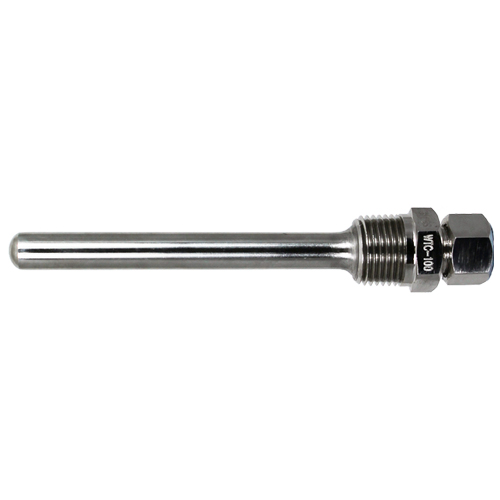

Thermowell Assemblies with Integrated Compression Fitting (to suit 6.0mm dia. tubes)

Product Code: WTC

The WTC threaded thermowells have an integrated compression fitting that includes a single compression olive to suit 6.0mm diameter tubes. They are fabricated from 316 Stainless Steel material and are supplied with a male process thread (complete with hexagon) which screws into the process.

The stem has an outside diameter of 11mm and a 7mm inside diameter.

The pockets are stocked in standard lengths up to 450mm so can normally be supplied ex-stock if required urgently.

Note: Minimum sensor length = stem length (U) + 50mm. E.g. 50mm length thermowell (WTC-050) is for a 100mm sensor.

  • Features
  • Technical
  • Options
  • Documents
  • Software
    • 316 stainless steel standard material
    • 11.0mm stem diameter (7.0mm Ø ID)
    • 1/2 inch BSPT male process thread
    • Integral compression fitting suits 6.0mm Ø tube
    • Available ex-stock
    • Replacement olives and nuts available
  • Technical Details
    Standard Material 316 Stainless Steel
    Stem Diameter 11.0mm (ID 7.0mm)
    Male Process thread (standard) 1/2 inch BSP tapered
    Integral Compression Fitting To suit 6.0mm diameter tube
    Standard Lengths (U) 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 450mm
  • Length Order Code
    50mm WTC-050
    100mm WTC-100
    150mm WTC-150
    200mm WTC-200
    250mm WTC-250
    300mm WTC-300
    450mm WTC-450
    Minimum sensor length = stem length (U) + 50mm
    E.g. WTC-050 (50mm) is for a 100mm sensor
