Type K Brake Disc Rubbing Style Thermocouple Sensor

Product Code: TK-KP

Normally used by the auto industry to monitor brake disc temperatures. The design incorporates a fully floating shoe onto which a miniature mineral insulated thermocouple is mounted. Suitable for use up to +800°C.

This product can be supplied with a calibration certificate.

Thermosense
Calibration
RoHS Compliance
Industry: Automotive

Description

Normally used by the automotive industry to monitor brake disc temperatures.

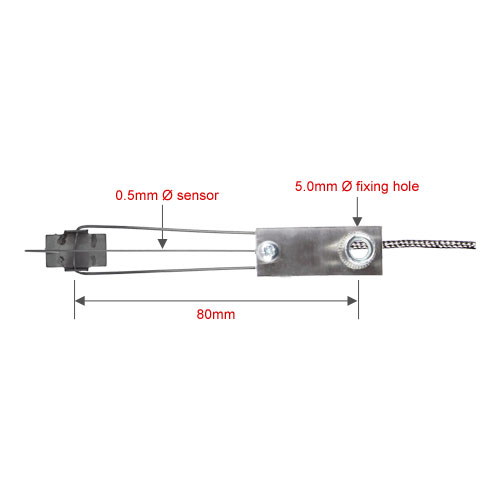

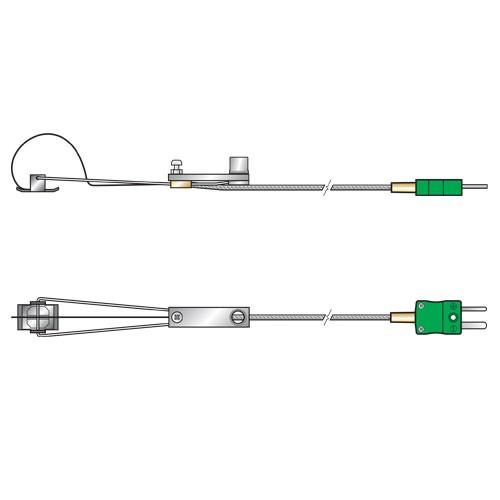

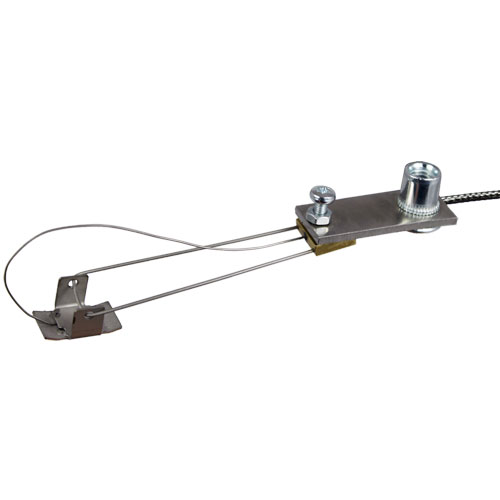

The design incorporates a fully floating shoe onto which a miniature mineral insulated thermocouple is mounted. The stainless steel bracket has a 5.0mm diameter hole, used for fixing the sensor into position. The spring pressure setting can be adjusted by means of a screw and locknut.

The stainless steel wire braided cable length is approximately 300mm and the sensors are supplied with a miniature thermocouple plug that is rated to +200°C. The sensing junction is insulated as standard.

Suitable for use up to +800°C.

This product can be supplied with a calibration certificate.
