Infrared Laser Thermometer -50°C to +800°C (13:1 ratio)

Product Code: HL-800K

The HL-800K infrared laser thermometer is very robust and is well suited to applications where contact measurement is not possible or desirable. A Type K Thermocouple can be connected via a miniature plug.

The HL-800K is very easy to use: simply point and measure. The measurement is read within 1 second and the laser pointer helps to precisely identify your measurement point. The unit has an adjustable emissivity and a 13:1 spot to distance ratio.

As standard the thermometer has a High / Low alarm facility, as well as Min, Max, Average and Difference functions, together with a data logging function (20 memory readings). The temperature readouts are backlit making them easy to read, even in the dark. A wide range of hand-held thermocouples are also available.

Supplied with a 9V battery and soft case.

Note: this product is not suitable for measuring human temperatures. The HL-BODY Infrared Body Thermometer is a suitable alternative.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
    • Laser targetting
    • Adjustable emissivity from 0.10 to 1.0
    • °C/°F selectable

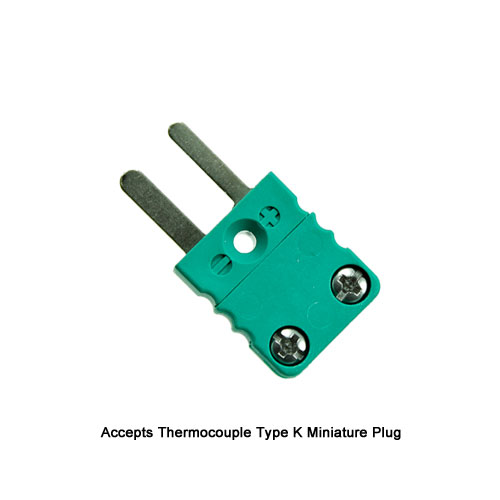

    • Accepts Type K Thermocouple (mini plug)
    • Data logging function (20 memory readings)
    • Automatic data hold
    • Auto power off / low battery indication
    • Backlit LCD display
    • Min/Max, Average, Difference displays
    • High and Low alarm
    • Over range indication
    • Supplied with 9V battery and soft case
    • 180mm x 106mm x 48mm
  • Technical Details
    Range Infrared -50°C to +800°C (-58°F to +1472°F)
    Type K -50°C to +1370°C (-58°F to +2498°F)
    Resolution 0.1°C
    Accuracy Infrared ±1.5% of reading ±2°C -20°C to +200°C
    ±2.0% of reading ±2°C +200°C to +538°C
    ±3.5% of reading ±5°C +538°C to +800°C
    ±5°C -50°C to +20°C
    Type K ±1.5% of reading ±3°C -50°C to +1000°C
    ±2.0% of reading ±3°C +1000°C to +1370°C
    Optical Resolution 13:1 (distance to spot size ratio)
    Emissivity Adjustable from 0.10 to 1.0
    Response Time < 1 second
    Power 1 x 9V battery (supplied)
    Dimensions 180mm x 106mm x 48mm
    Weight 250g


  • No software available

Note: supplied product colour may vary from image shown

Type K sensor not included
