Infrared Laser Thermometer -50°C to +1850°C (50:1 ratio)

Product Code: HL-1850D

Send Enquiry   Buy Online

The HL-1850D infrared laser thermometer is very robust and well suited to applications where contact measurement is not possible or desirable. A Type K Thermocouple can be connected via a standard miniature plug.

The HL-1850D is very easy to use: simply point and measure. The measurement is read within 1 second and the dual laser targetting helps to precisely identify your measurement point. The unit has an an adjustable emissivity, 50:1 spot to distance ratio and includes a data loggin function for up to 99 readings (software and USB cable supplied).

As standard the HL-1850D features a High / Low alarm facility, as well as Min/Max, Average and Difference functions. The temperature readouts are backlit making them easy to read, even in the dark. A wide range of hand-held thermocouples are also available.

Supplied with a 9V battery, carry case, tripod USB cable and software.

As featured on The Gadget Show!

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
    • Dual laser targetting for accuracy
    • Adjustable emissivity from 0.10 to 1.0
    • °C/°F selectable
    • Accepts Type K Thermocouple (mini plug)
    • Data logging function (99 readings)
    • Automatic data hold
    • Auto power off
    • White backlit LCD display
    • Min/Max, Average, Difference displays
    • High and Low alarm
    • Over range indication
    • Low battery indication
    • Trigger lock
    • Supplied with 9V battery, carry case, tripod, USB cable and software for logged data
    • 204mm x 155mm x 52mm
  • Technical Details
    Range Infrared -50°C to +1850°C (-58°F to +3362°F)
    Type K -50°C to +1370°C (-58°F to +2498°F)
    Resolution 0.1°C/°F (<= 1000°C), 1°C/°F (> 1000°C)
    Accuracy Infrared ±1.0% of reading ±1°C +20°C to +500°C
    ±1.5% of reading +500°C to +1000°C
    ±2.0% of reading +1000°C to +1850°C
    ±3°C of reading -50°C to +20°C
    Type K ±1.5% of reading (±2°C) +1000°C to +1370°C
    ±1.5% of reading (±3°C) -50°C to +1000°C

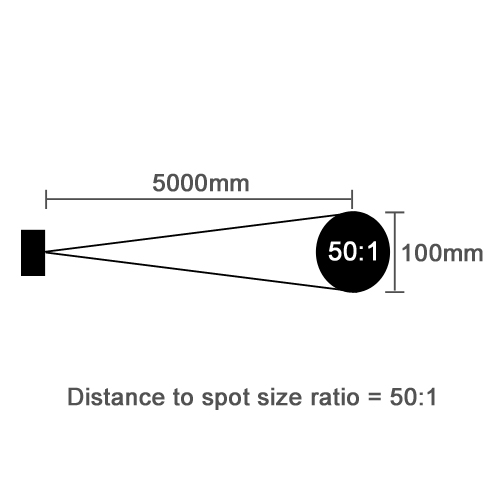

    Optical Resolution 50:1 (distance to spot size ratio)
    Emissivity Adjustable from 0.10 to 1.0
    Response Time < 150 milliseconds
    Power 1 x 9V battery (supplied)
    Dimensions 204mm x 155mm x 52mm
    Weight 320g



  • PDF (tab 4)Datasheet

  • No software available

Note: supplied product colour may vary from image shown

Type K sensor not included
