Hand-held Type K Needle Tip Penetration Sensor 150mm 4.7mm dia. (+800°C)

Product Code: HK-247

Suitable for penetration into semi-solids. 4.7mm diameter x 150mm length mineral insulated stem, rated for use up to +800°C. Plastic handle rated up to +135°C. Supplied with 1 metre of coiled extension cable and Type K miniature plug.

This product can be supplied with a calibration certificate.

Thermosense
Thermocouple Technical Reference Datasheet
Description
Features
Specification
Enquiry
Calibration
RoHS Compliance

Enquiry List

Do you have an enquiry about this product and/or other products? Add them to an enquiry list and send to us. You can edit your list at any time before sending.

Hand-held Type K Needle Tip Penetration Sensor 150mm 4.7mm dia. (+800°C) (HK-247)

Message:
Quantity:

Description

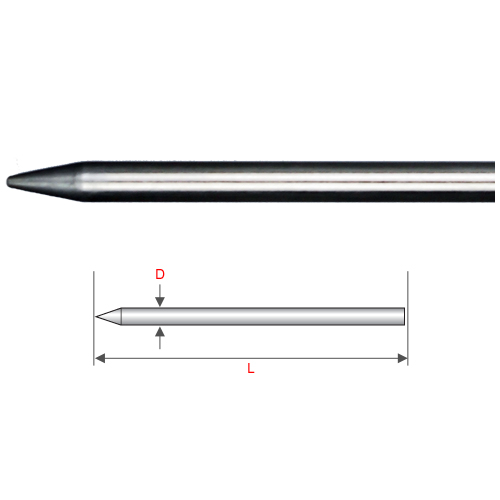

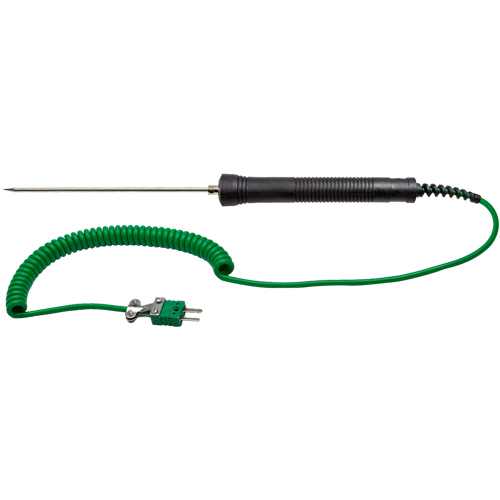

The HK-247 sensor has a 4.7mm diameter, 150mm long mineral insulated stem, rated for use up to +800°C. The plastic handle is rated up to +135°C.

Supplied with 1 metre of coiled extension cable with a Type K miniature flat pinned plug attached.

This product can be supplied with a calibration certificate.
