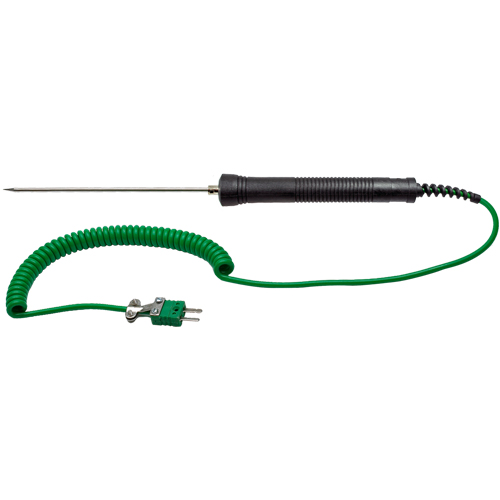

Hand-held Type K Needle Tip Penetration Sensor 150mm 3.2mm Ø (+800ºC)
Product Code: HK-232
The HK-232 sensor has a 3.2mm diameter, 150mm long mineral insulated stem, rated for use up to +800°C. The plastic handle is rated up to +135°C.
Supplied with 1 metre of coiled extension cable with a Type K miniature flat pinned plug attached.
This product can be supplied with a calibration certificate. Contact sales for further information.
- Features
- Technical
- Documents
- Software
-
- Suitable for penetration into semi-solids
- Stem rated up to +800°C, handle rated up to +135°C
- 3.2mm Ø stem
- 150mm length
-

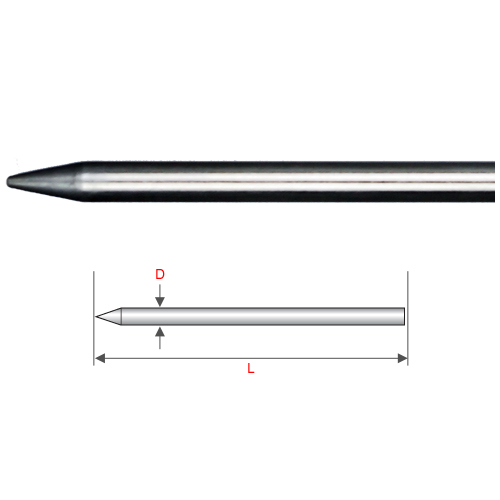

Technical Details Stem Temperature Rating Up to +800°CHandle Temperature Rating (Plastic) Up to +135°CStem Diameter (D) 3.2mm Stem Length (L) 150mm -
Thermocouple Technical ReferenceDatasheet -
No software available
