Low Cost Cold Chain PDF Temperature Data Logger (Single-Use)

Product Code: HDT-10CC

Easily monitor the temperature of your cold chain process and store up to 8192 readings with this single-use USB data logger. No additional software or USB drivers are required to program the data logger as they are all contained within the unit.

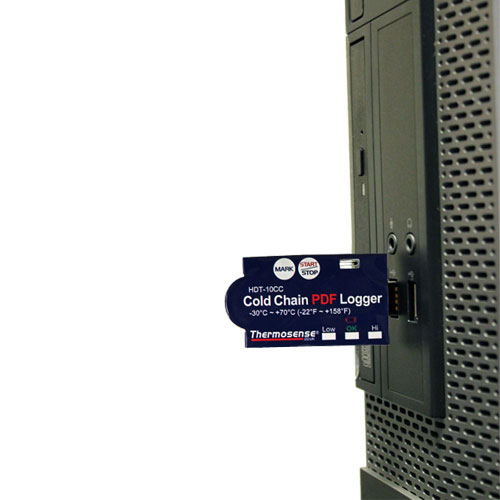

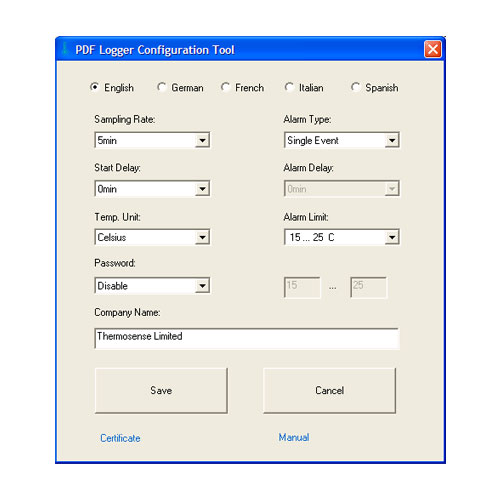

Simply plug the logger into a USB port of your computer, run the software to set parameters such as sampling interval, start delay and alarms, press the start key and place the logger into its IP65 pouch and then into the area to be monitored. Once completed, press the stop key, plug the logger back into your computer and a PDF report of results will be generated automatically.

An instruction manual and manufacturer's calibration certificate are also embedded in PDF format on each data logger.

Compatible with Microsoft Windows XP, 7, 8 and 10.

HDT-10CC example process flow

  • Features
  • Technical
  • Documents
  • Software
    • Easy to use
    • Low cost single-use data logger with accurate thermistor sensor
    • Large memory capacity: 8192 readings
    • Plug and play (no software required)
    • USB 2.0 connection interface
    • Tamper proof
    • Automatic PDF report generation at end of process (pdf viewer required)
    • Fully programmable: language, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, username and password
    • Password file encryption technology to secure data integrity
    • Compact, light, IP65 waterproof and flat design
    • 4 status LEDs: REC, Low Bat., High and Low temperature alarms
    • "Mark" key to allow 8 markings during data gathering
    • Summary, graph and detailed data list PDF report with serial number
    • Embedded instruction manual and manufacturer's calibration certificate
    • Software/manual languages: English, German, French, Italian, Spanish
    • Compatible with Microsoft Windows XP, 7, 8 and 10.
    • EN12830, FDA 21 CFR part 11 and RoHS compliance
  • Technical Details
    Temperature Range NTC thermistor, -30°C to +70°C (-22°F to +158°F)
    Temperature Resolution 0.1°C (0.1°F)
    Temperature Accuracy ±0.5°C
    Unit of Measurement  °C, °F
    Logging Type Single-use
    Sampling Points 8192 readings
    Shelf Life 12 months
    Operating Temperature -30°C to +70°C (whilst logging), room temperature whilst in computer
    Operating RH% Humidity < 80%
    Storage Temperature -20°C to +50°C (-4°F to +122°F)
    Storage RH% Humidity < 90%
    Battery Internal 3.0V CR2032 (non-replaceable)
    Battery Life  ~12 months (depending on sampling rate)
    Sampling Interval 30 seconds, 5, 10, 30, 60, 90, 120 minutes
    Start Delay 0, 5, 30, 45, 60, 90, 120 minutes
    Selectable Alarm Range -20°C to -10°C, -10°C to 0°C, +2°C to +8°C, 0°C to +15°C, 0°C to +25°C, +15 to +25°C or Manual Alarm Range
    Alarm Delay 0, 5, 30, 45, 60, 90, 120 minutes
    Alarm Type Single event, cumulative, disable
    Operation Keys 2 keys: Start/Stop and Mark
    LED Indicators REC, Low Bat., High Alarm, Low Alarm
    Connection Interface USB 2.0
    Certifications EN12830, FDA 21 CFR part 11, RoHS compliance
    Dimensions (unpouched) 73mm (L) x 33mm (W) x 2.5mm (D)
    Dimensions (pouched) 105mm (L) x 51mm (W) x 2.5mm (D)
    Weight ~13g
  • Embedded Software Compatibility

    Embedded Software Compatibility

    Compatible with Microsoft Windows XP, 7, 8 and 10
