Glycerine-Filled Pressure Gauge (63mm Ø)

Product Code: GSD

63mm diameter pressure gauge. Bottom or back entry. 1/4 inch BSPP process entry thread. Ranges available from 1 bar to 100 bar (15 psi to 1500 psi). IP 65 rated.

The Pressure Direct GSD range of pressure gauges are suitable for use in all gaseous and liquid media that will not attack the copper alloy parts or obstruct the pressure system.

Commonly used for pneumatic, heating, ventilation, air-conditioning and medical engineering applications.

  • Features
  • Technical
  • Options
  • Documents
  • Software
    • 63mm diameter

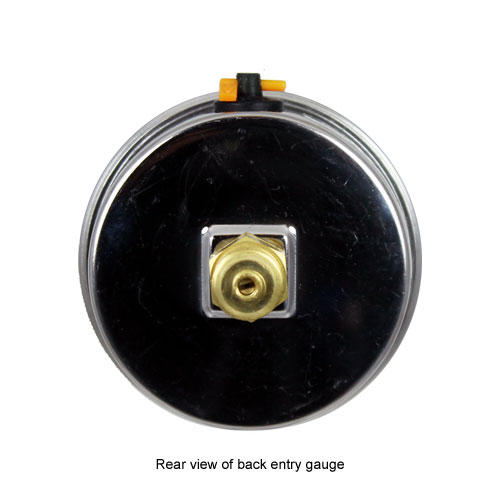

    • Bottom or back entry
    • Dual scale pressure range (bar/psi)
    • 1/4 inch BSP Parallel process entry thread
    • 0...1 bar to 0...100 bar (0...15 psi to 0...1500 psi)
    • Vibration and shock resistant
    • IP 65 rated

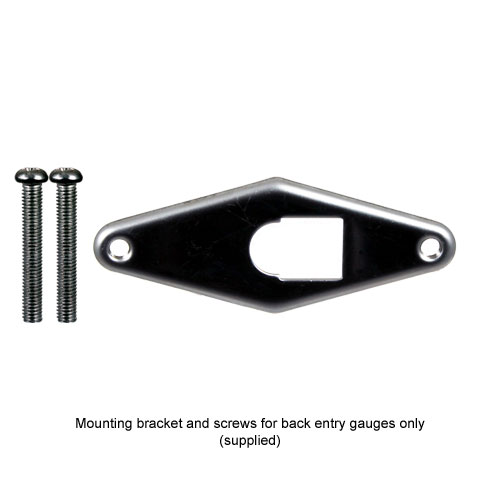

    • Supplied with mounting bracket (back entry gauges only)
    • Supplied glycerine filled as standard, but can be supplied as a dry case if required
  • Technical Details
    Design EN 837-1
    Accuracy Class 1.6
    Movement Copper Alloy
    Process Connection 1/4 inch BSP Parallel, Brass
    Pressure Element Copper Alloy
    Pressure Limitation Steady: 3/4 x full scale value
    Fluctuating: 2/3 x full scale value
    Short Time: full scale value
    Dial 63mm Ø, aluminium, white, with pointer stop pin
    Pointer Aluminium, Black

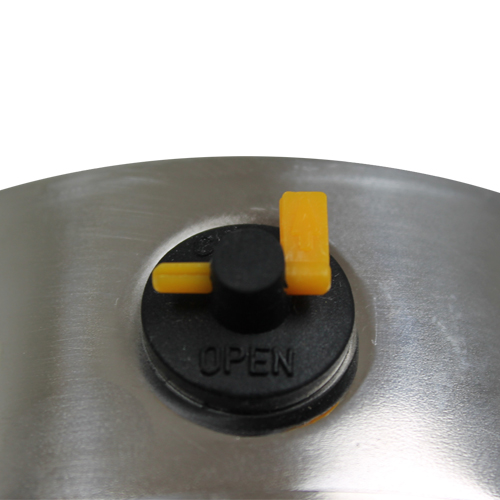

    Case 304 Stainless Steel, venting cap on top
    Window Glass
    Bezel Ring Crimped, polished
    Filling Liquid Glycerine 99.7%
    Temperature Effect When measuring system temperature deviates from reference temp. (+20°C): Max. ±0.4 %/10 K of the span
    Ingress Protection IP 65 per EN 60529 / IEC 60529
    Operating Temperature Ambient: -20°C to +60°C
  • Pressure Range (dual scale) Order Code
    bar psi Back Entry Bottom Entry
    0...1 0...15 GSD01R GSD01B
    0...2 0...30 GSD02R GSD02B
    0...4 0...60 GSD04R GSD04B
    0...7 0...100 GSD07R GSD07B
    0...10 0...150 GSD10R GSD10B
    0...16 0...230 GSD16R GSD16B
    0...20 0...300 GSD20R GSD20B
    0...25 0...360 GSD25R GSD25B
    0...40 0...580 GSD40R GSD40B
    0...60 0...900 GSD60R GSD60B
    0...100 0...1500 GSD100R GSD100B
  • No software available
