Mineral Insulated Thermocouple Sensor with Miniature Plug/Socket

Product Code: TFP/TFLP/TFS

Send Enquiry   Buy Online

Commonly used in applications where a quick, simple connection is required. Available with probe diameters ranging from 0.5mm up to 3.0mm and supplied with a miniature flat-pinned plug or socket rated up to +200°C (higher temperature versions also available).

Various probe sheath materials are available and the sensors can be used in a wide variety of applications, with temperatures ranging from as low as -100°C and up to +1300°C.

The mineral insulated construction enables the sensors to be bent, twisted or flattened without impairing performance. The bending radius of the sheath is 10 x probe diameter; this can be reduced to 4 x, if a bending set is used.

The sensors can be supplied in lengths to suit your application requirements.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Options
  • Documents
  • Software
    • 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm or 3.0mm Ø probe
    • Accuracy to IEC 60584.2 Class 2 (Class 1 also available)
    • Terminated with a miniature thermocouple connector (+200°C)
    • Colour coded to IEC 60584.3 (BS EN 60584.3)
    • Ex-stock options available
  • Item Code
    Sensor Type Mineral Insulated Thermocouple Sensor with Miniature Plug TFP

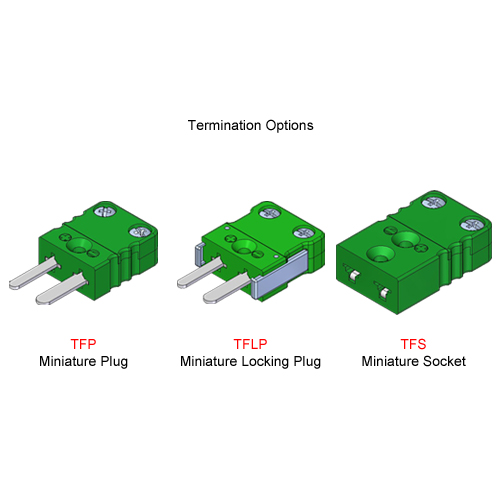

    Mineral Insulated Thermocouple Sensor with Miniature Locking Plug TFPL
    Mineral Insulated Thermocouple Sensor with Miniature Socket TFS
    Conductor/Thermocouple Type     Type K K
    Type J  J
    Type T  T
    Type N  N
    Type E  E
    Metal Sheath Material 321 Stainless Steel +800°C max (Thermocouple Types K, J, T, E) 321
    310 Stainless Steel +1100°C max (Thermocouple Type K) 310
    Inconel 600 +1100°C max (Thermocouple Types K, N) 600
    Nicrosil D +1300°C max (Thermocouple Types K, N) 200
    Incoloy 800 +1100°C max (Thermocouple Type K) 800
    253MA +1150°C max (Thermocouple Type K) 253
    Alloy C276 +1100°C max (Thermocouple Type K) 276

    Probe Diameter (D1)

    		 0.5mm 0.5
    0.75mm 0.75
    1.0mm 1.0
    1.5mm 1.5
    2.0mm 2.0
    3.0mm 3.0
    Sensing Junction Insulated (isolated, ungrounded), Simplex I
    Grounded (non-isolated), Simplex G
    Probe Length (mm) (L1) As required to suit your application e.g. 300
    Optional Thermocouple Connector To Match Sensor Termination (supplied loose) Miniature Thermocouple Socket (Types K, J, T, N, E) FMJ
    Miniature Locking Thermocouple Socket (Types K, J, T, N, E) FMLJ
    Miniature Thermocouple Plug (Types K, J, T, N, E) FMP

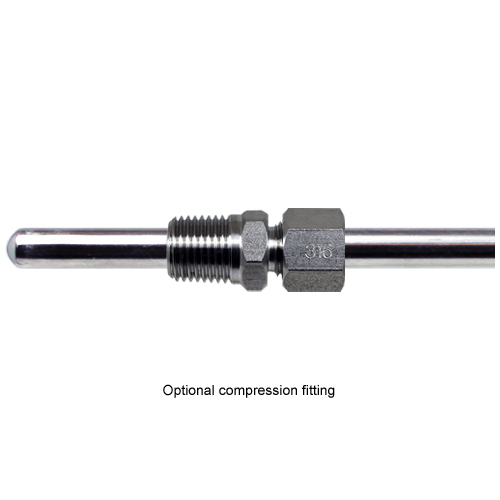

    Optional 316 Stainless Steel Compression Fitting (to suit probe diameter)

    Add suffix to code: AS for 1/8", CS for 1/4", ES for 1/2" (e.g. CF30AS)

    		 0.5mm (1/8" BSPT) CF05
    0.75mm (1/8" BSPT) CF075
    1.0 (1/8" BSPT) CF10
    1.5 (1/8" BSPT, 1/4" BSPT) CF15
    2.0 (1/8" BSPT, 1/4" BSPT) CF20
    3.0 (1/8" BSPT, 1/4" BSPT, 1/2" BSPT) CF30



    Order Code (example): TFP-K-310-1.5-I-250-FMJ-CF15AS

  • PDF (tab 4)Thermocouple Technical Reference
    PDF (tab 4)Datasheet

  • No software available

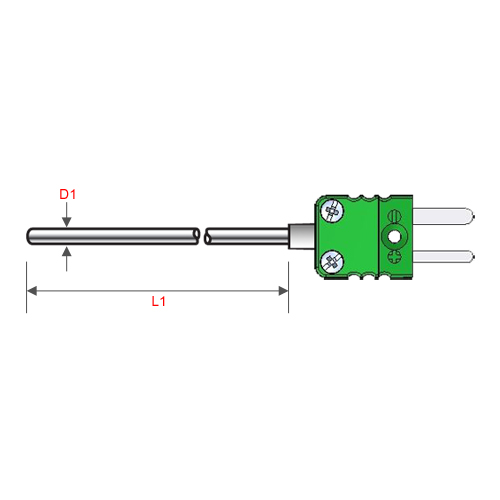

Note: Type K conductor image shown for illustrative purposes only. Other conductor types are available.
