Pressure Transmitter (4~20mA, G1/2)

Product Code: APB3H / APB3HV

Send Enquiry   Buy Online

4~20mA Current Loop Output (pressure and vacuum options)

The APB range of 4~20mA high accuracy, low cost ceramic pressure transmitters are designed for use in most industrial applications and are suitable for the measurement of most pressure mediums.

The transmitters incorporate a high quality thick-film ceramic sensor and special amplified circuit. Output is configured to 4~20mA current loop. The pressure diaphragm is made from ceramic material and its wetted parts are made from 316L stainless steel.

Because of the thermal stability of ceramic and its thick-film resistance, the transmitter can be operated at a higher temperature range; at the same time, this also makes the zero and sensitivity thermal shifts over the whole operating temperature range of the transmitter very small.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Options
  • Documents
  • Software
    • 4~20mA current loop output signal
    • G1/2 - 1/2" BSP(M) process connection
    • Pressure and vacuum options
    • Vast pressure measurement range
    • Wide application scope and long service life
    • Automatic testing and laser trimming compensating zero and sensitivity
    • High accuracy and long-term stability
    • Good anti-corrosion and anti-impact ability
    • Available ranges from -1 to +600 bar
    • IP65 rated
  • Technical Details
    Pressure Medium Gas or liquid compatible with ceramic and stainless steel
    Pressure Range -1...600 bar
    Overload Pressure 150%FS
    Burst Pressure 200%FS
    Output Signal 4~20mA Current Loop (2-wire)
    Accuracy 0.25%FS
    Load Resistance RL = (U - 6.5V) / 0.02A
    Long-Term Stability <0.2%FS/year
    Supply Voltage 12~30VDC
    Compensated Temperature Range 0~70°C
    Operating Temperature Range -20°C to +80°C
    Storage Temperature Range -30°C to +90°C
    Temperature Coefficient Of Zero 0.3%FS/10°C
    Temperature Coefficient Of Span 0.3%FS/10°C
    Insulation Resistance 100MΩ@50VDC
    Process Connection G1/2 - 1/2" BSP(M)

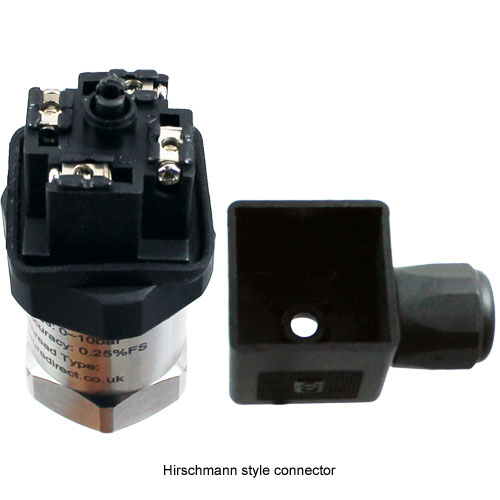

    Electrical Connection Hirschmann style connector (others available)
    Material of Wetted Part 1Cr18Ni9Ti
    Material of Pressure Membrane Ceramic (Piezoresistive pressure sensor above 200 bar)
    Material of Housing 1Cr18Ni9Ti
    Sealing N-Butyronitrile or Fluoro-Rubber Sealing Ring
    Ingress Protection Rating IP65 rated
  • Type Range (bar) Order Code
    Pressure 0 to 1.0 APB3H-0010
    Pressure 0 to 1.6 APB3H-0016
    Pressure 0 to 2.5 APB3H-0025
    Pressure 0 to 4.0 APB3H-0040
    Pressure 0 to 6.0 APB3H-0060
    Pressure 0 to 10.0 APB3H-0100
    Pressure 0 to 16.0 APB3H-0160
    Pressure 0 to 25.0 APB3H-0250
    Pressure 0 to 40.0 APB3H-0400
    Pressure 0 to 60.0 APB3H-0600
    Pressure 0 to 100.0 APB3H-1000
    Pressure 0 to 160.0 APB3H-1600
    Pressure 0 to 250.0 APB3H-2500
    Pressure 0 to 400.0 APB3H-4000
    Pressure 0 to 600.0 APB3H-6000



    Type Range (bar) Order Code
    Vacuum -1 to 0.0 * APB3HV-0000
    Vacuum -1 to 1.5 APB3HV-0015
    Vacuum -1 to 2.5 APB3HV-0025
    Vacuum -1 to 6.0 APB3HV-0060



    * -1 to 0.0 vacuum transmitters are supplied with a silicon element
