Sanitary Pressure Transmitter with Flush Face Diaphragm (4~20mA, G1/2)

Product Code: APB2S

The APB2S range of sanitary pressure transmitters have a flush diaphragm which is suitable for the measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard transmitters.

The transmitters have piezoresistive technology which incorporates a silicon sensor. The diaphragm and wetted parts are 316L stainless steel.

The stability of the silicon element allows the transmitter to be operated at a higher temperature range; at the same time this makes the zero and sensitivity thermal shifts over the whole operating temperature range of the transmitter very small.

  • Features
  • Technical
  • Options
  • Documents
  • Software
    • 0...100 bar measuring ranges
    • 4~20mA current loop output
    • G1/2 - 1/2" BSP(M) process connection
    • Flush membrane structure without input pressure hole & cavity
    • Welded isolated diaphragm
    • High accuracy, high strength, sanitary type
    • Dimensions can be customised
    • Gauge, absolute and sealed gauge pressure types
  • Technical Details
    Pressure Medium Gas or liquid compatible with stainless steel
    Pressure Range 0...100 bar
    Overload Pressure 150%FS
    Burst Pressure 200%FS
    Output Signal 4~20mA Current Loop (2-wire)
    Accuracy 0.25%FS, 0.5%FS (standard)

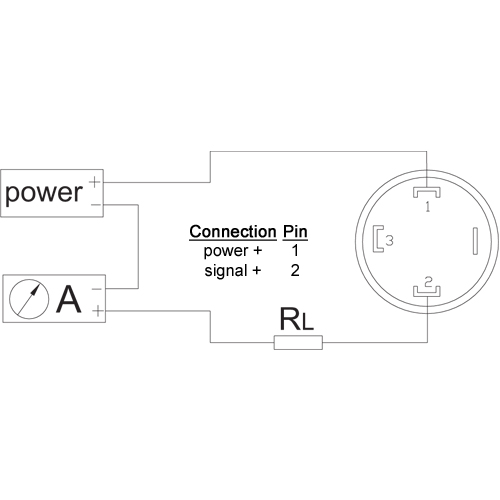

    Load Resistance RL = (U - 6.5V) / 0.02A
    Long-Term Stability <0.2%FS/year
    Supply Voltage 12~36VDC
    Compensated Temperature Range 0~60°C (0...0.35 bar)
    Operating Temperature Range -30°C to +85°C
    Measured Media Temperature Range -40°C to +125°C
    Temperature Coefficient Of Zero 0.3%FS/10°C
    Temperature Coefficient Of Span 0.3%FS/10°C
    Insulation Resistance 100MΩ@50VDC
    Process Connection G1/2 - 1/2" BSP(M)
    Electrical Connection Hirschmann style connector (others available)
    Material of Wetted Part 316 Stainless Steel
    Material of Pressure Membrane 316L Stainless Steel
    Material of Housing Stainless Steel
  • Type Range (bar) Order Code
    Pressure 0 to 1.0 APB2S-0010
    Pressure 0 to 1.6 APB2S-0016
    Pressure 0 to 2.5 APB2S-0025
    Pressure 0 to 4.0 APB2S-0040
    Pressure 0 to 6.0 APB2S-0060
    Pressure 0 to 10.0 APB2S-0100
    Pressure 0 to 16.0 APB2S-0160
    Pressure 0 to 25.0 APB2S-0250
    Pressure 0 to 40.0 APB2S-0400
    Pressure 0 to 60.0 APB2S-0600
    Pressure 0 to 100.0 APB2S-1000
  • No software available

Note: the diaphragm is fragile and, ideally, should only be used with liquid or gas mediums.
