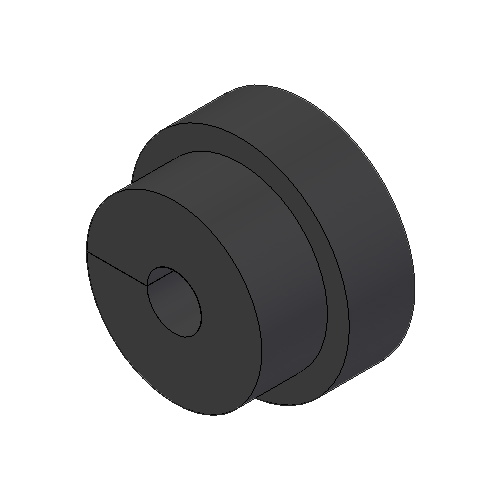

Standard Connector Grommet

Product Code: RSG

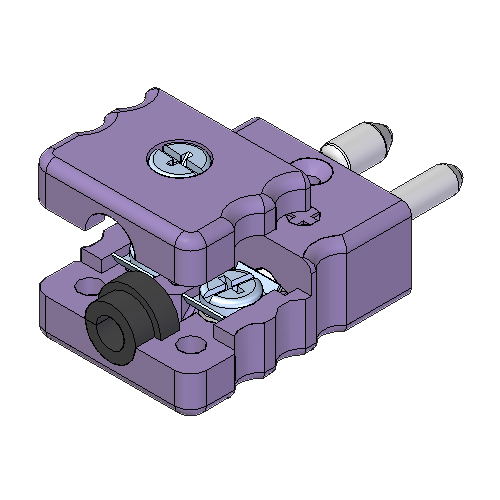

The grommet can be fitted in the entrance hole of a Hamitherm standard connector to prevent moisture and dirt from entering the connector.

Has limited strain relief capabilities.

  • Features
  • Options
  • Documents
  • Software
    • Prevents moisture and dirt from entering the connector
    • Silicone ring, slit for easy mounting over the wire. Will compress on the wire when the connector cover is fitted
    • +200°C Max temperature rating
    • Suits Hamitherm standard connectors

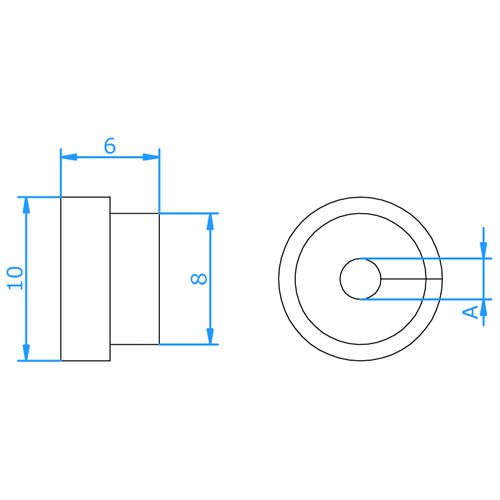

  • Hole Diameter Order Code
    1.5mm RSG-15
    2.5mm RSG-25
    4.5mm RSG-45



  • No software available
