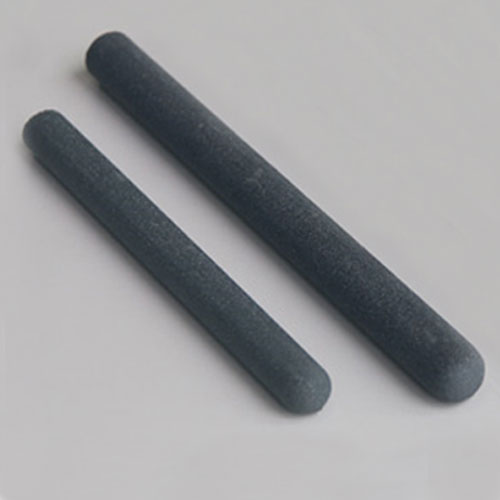

Recrystallised Silicon Carbide (RSIC) Thermocouple Protection Sheaths
Product Code: ZRS
Recrystallised Silicon Carbide (RSIC) offers high strength, high-temperature resistance, ground resistance, abrasion and corrosion resistance, oxidation resistance, good thermal shock resistance and high thermal conductivity.
- Description
Description
Recrystallised Silicon Carbide (RSIC) offers high strength, high-temperature resistance, ground resistance, abrasion and corrosion resistance, oxidation resistance, good thermal shock resistance and high thermal conductivity. The sheaths are commonly used in chemical, metallurgy and industrial ceramic kiln applications. It exhibits tremendous hot strength and oxidation resistance.
As there is no bonding material and the product is almost pure silicon carbide the application temperatures are as high as 1650°C with high thermal cycling possible.
Advantages
- Long service life
- Good abrasive resistance
- High thermal shock resistance
- High electrical insulation resistance
- Anti-corrosion at high temperatures
| Properties | Unit | Value |
|---|---|---|
| SiC Content | Vol% | ≥99 |
| Bulk Density | g.cm-3 | 2.65~2.75 |
| Apparent Porosity | % | ≤15 |
| Modulus of Rupture at 20°C | Mpa | 90~100 |
| Modulus of Rupture at 1300°C | Mpa | 100~110 |
| Modulus of Crushing at 20°C | Mpa | ≥300 |
| Hardness | Kg/mm2 | 1800-2000 |
| Fracture Toughness | MPaXM½ | 1.8-2.0 |
| Thermal Conductivity at 1000°C | w.m-1.k-1 | 35-36 |
| Thermal Expansion at 1200°C | Ax10-6/°C | 4.6 |
| Maximum Working Temperature | °C | 1650 |
Standard sizes (mm)
| OD | ID | Minimum Length | Maximum Length |
|---|---|---|---|
| 15 | 9 | 300 | 800 |
| 20 | 13 | 300 | 1000 |
| 25 | 17 | 300 | 1250 |
| 30 | 22 | 300 | 1300 |
| 32 | 24 | 300 | 1300 |
| 35 | 27 | 300 | 1400 |
| 38 | 30 | 300 | 1400 |
| 40 | 30 | 300 | 1500 |
| 42 | 32 | 300 | 1500 |
| 45 | 35 | 300 | 1600 |
| 48 | 36 | 300 | 1700 |
| 50 | 38 | 300 | 1800 |
