Hand-held Type K Surface Measurement Sensor 75mm 6.4mm Ø (+400ºC)

Product Code: HK-401

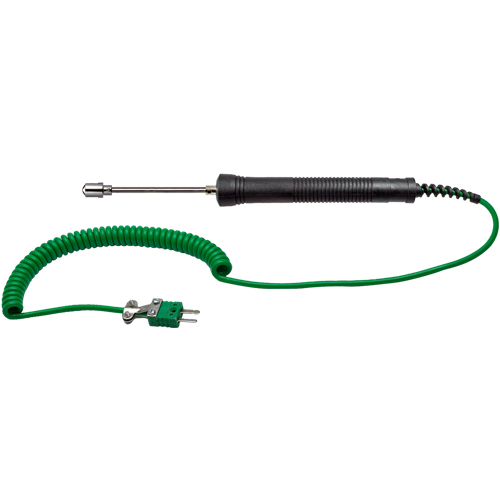

The HK-401 sensor has a thermocouple ribbon on the stem tip (standard tip) that provides a quick speed of response when pushed onto a measuring surface.

The stem is 6.4mm diameter x 75mm long (rated for use up to +400°C). The plastic handle is rated up to +135°C.

Supplied with 1 metre of coiled extension cable with a Type K miniature flat pinned plug attached.

  • Features
  • Technical
  • Documents
  • Software
    • Stem rated up to +400°C, handle rated up to +135°C
    • 6.4mm Ø stem, 15mm Ø tip
    • 75mm stem length
    • Supplied with standard tip (heavy duty tip also available)
  • Technical Details
    Stem Temperature Rating
    Up to +400°C
    Handle Temperature Rating (Plastic)
    Up to +135°C
    Stem Diameter 6.4mm

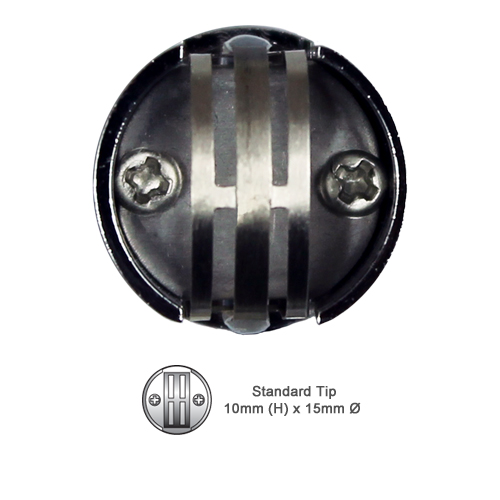

    Tip/Pot Dimensions 10mm (H) x 15mm Ø
    Stem Length (Nominal) 75mm
    Standard/Heavy Duty Tip Standard


  • No software available
