Hand-held Type K General Purpose Sensor 75mm 3.2mm Ø (+1000ºC)
Product Code: HK-101

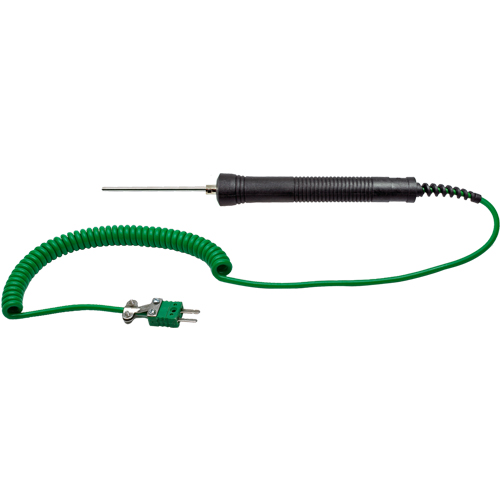

The HK-101 sensor has a 3.2mm diameter, 75mm long mineral insulated stem, rated for use up to +1000°C. The plastic handle is rated up to +135°C.
Supplied with 1 metre of coiled extension cable with a Type K miniature flat pinned plug attached.
This product can be supplied with a calibration certificate. Contact sales for further information.
- Features
- Technical
- Documents
- Software
-
- General purpose sensor
- Stem rated up to +1000°C, handle rated up to +135°C
- 3.2mm Ø stem
- 75mm length
-

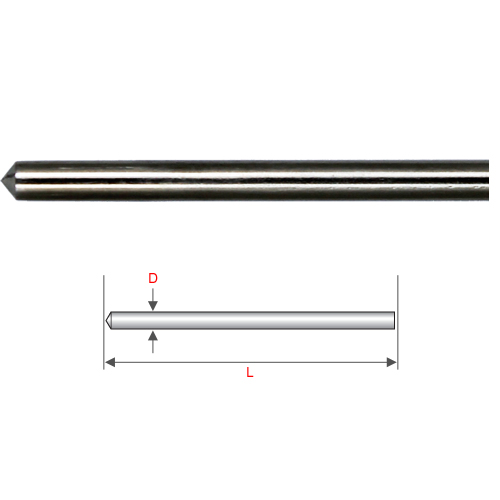

Technical Details Stem Temperature Rating Up to +1000°CHandle Temperature Rating (Plastic) Up to +135°CStem Diameter (D) 3.2mm Stem Length (L) 75mm -
Thermocouple Technical ReferenceDatasheet -
No software available
Also available with 150mm stem (Product Code HK-100)
