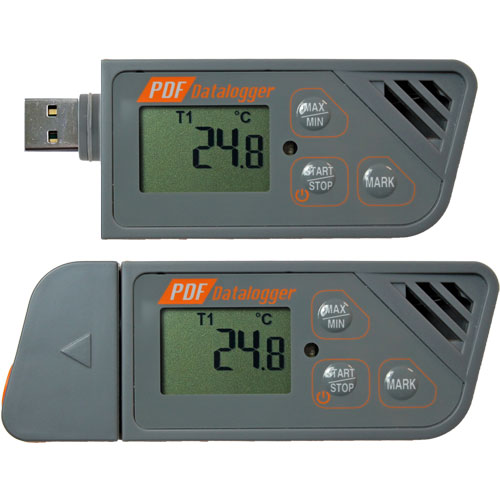

Multiple-Use PDF Data Logger (Temperature Internal NTC Thermistor)

Product Code: HDT-160

Easily monitor the temperature of your process with this multiple-use, PDF temperature USB data logger. The HDT-160 accurately measures ambient temperature using an internal NTC thermistor temperature sensor and can sample up to 48,000 readings, allowing up to 8 markings during data gathering.

The logger is compact, lightweight, battery powered and features a clear LCD display. No additional software or drivers are required as everything is embedded within the logger. Fully programmable, the configuration software can be used to set the language, program sample rate, start delay, temperature unit, alarm type, alarm delay, alarm temperature limits, password and company name. The configuration software is compatible with Microsoft® Windows XP, 7, 8 and 10.

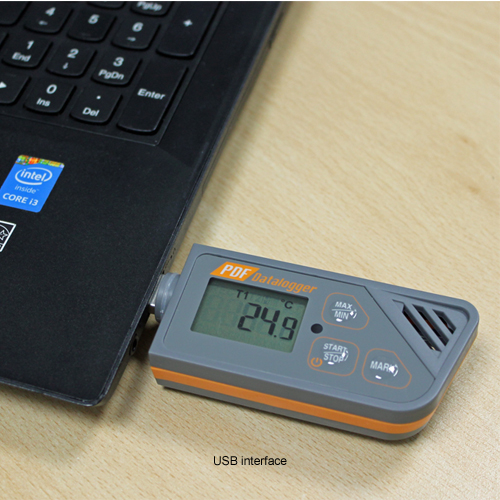

To record data simply plug the logger into a computer USB port, run the configuration software and set required parameters such as language, sample rate, alarm and password. Remove the logger, press the start key and place in the area to be monitored. Once complete press the stop key, plug back into your computer, run the software again and convert the recorded data into a PDF report or Microsoft® Excel spreadsheet containing device specification and statistical summary, a table of results and a graph (graph is shown on pdf report only).

An instruction manual and manufacturer's calibration certificate are also stored in PDF format on the logger.

EN12830 and RoHS compliant, with an IP67 (NEMA 6) protection class.

Also available as:

HDT-161 Multiple-Use PDF Data Logger (Temperature Internal/External NTC Thermistor)

HDT-162 Multiple-Use PDF Data Logger (Temperature Internal NTC Thermistor, Humidity Internal Capacitive)

  • Features
  • Technical
  • Documents
  • Software
    • Multiple-use, easy to use (large LCD), compact, light design
    • USB 2.0 interface, plug and play (no software or drivers required)
    • Battery powered (supplied)
    • Large memory capacity: 48,000 readings
    • High accuracy NTC thermistor temperature sensor (internal)
    • "Mark" key to allow up to 8 markings during data gathering
    • Embedded manual (6 languages) and calibration certificate
    • Fully programmable: 6 languages, sample rate, start delay, temp. unit, alarm type, alarm delay, alarm temp. limits, password, company name
    • Detailed reports in PDF and Microsoft® Excel format
    • 4 status LEDs: REC, Low Battery symbol, High (H), Low (L)
    • EN12830 and RoHS compliance
    • IP67 (NEMA 6) protection class
    • Compatible with Microsoft® Windows XP / 7 / 8 / 10
  • Technical Details
    Temperature Sensor NTC Thermistor
    Temperature Range -30°C to +70°C (-22°F to +158°F)
    Temperature Accuracy ±0.5°C
    Temperature Resolution  0.1°C (0.1°F)
    Unit of Measurement  °C, °F
    Protection Class IP67 (NEMA 6)
    Logging Type Multiple-use
    Sampling Points (readings) 48,000
    Sampling Interval 30 seconds, 5, 10, 30, 60, 90, 120 minutes
    Start Delay 0, 5, 30, 45, 60, 90, 120 minutes, 24 hours
    Interface/Compatibility USB 2.0, Microsoft® Windows XP / 7 / 8 /10
    Display LCD (29mm x 19mm approx.)
    Operation Keys  3 keys: Start/Stop, Mark and Max/Min
    LED Indicators  REC, Low Battery Symbol, High Alarm, Low Alarm
    Alarm Range (programmable)  -30°C to +70°C (-22°F to +158°F)
    Alarm Delay 0, 5, 30, 45, 60, 90, 120 minutes
    Alarm Type  Single event, cumulative, disable
    Operating Temperature -30°C to +70°C (-22°F to +158°F) whilst logging, room temperature whilst in computer
    Operating RH% Humidity < 80%
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
    Storage RH% Humidity < 90%
    Compliance  EN12830, RoHS
    Power 2 x 3V CR2032 batteries (supplied, replaceable), 3 months life approx.
    Dimensions (logger) 110mm (L) x 40mm (W) x 19mm (D)
    Weight (logger) ~52g (with batteries installed), ~46g (without batteries)


  • Embedded Software Compatibility

    Embedded Software Compatibility

    Compatible with Microsoft Windows XP, 7, 8 and 10
