Single Pair Silicone Rubber Twisted Pair, PFA Cores Thermocouple Cable (-40°C to +200°C)

Product Code: CST12

A very flexible and robust high temperature insulation cable.

One pair of stranded conductors. Each conductor is PFA insulated. The pair is twisted together then Silicone Rubber sheathed. Offers a smaller OD than an all-Silicone-Rubber cable.

  • Features
  • Options
  • Documents
  • Software
    • Temperature rated -40°C to +200°C
    • Available in Thermocouple Extension Grades KX, JX, TX, NX, EX
    • Available in Thermocouple Compensating Grades KCB, RCA
    • Colour coded to IEC 60584.3 (BS EN 60584.3). ANSI MC96.1 colours available on request
    • Very flexible and robust
  • Conductor Size Dimensions (approximate) Profile KX KCB JX TX NX EX RCA Order Code
    7/0.2mm Ø (0.22mm²) 3mm Round Y Y Y Y Y Y Y CST12
  • No software available

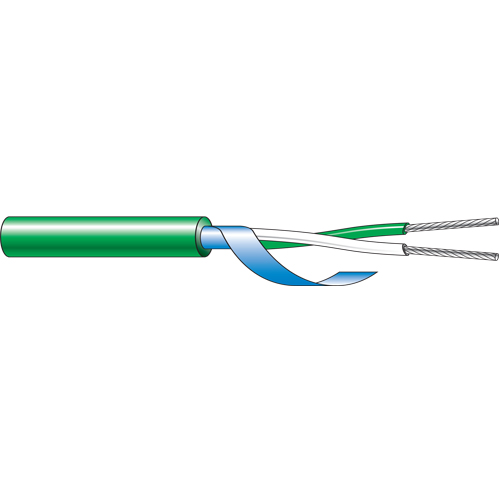

Type KX (green) cable images shown for illustrative purposes only
