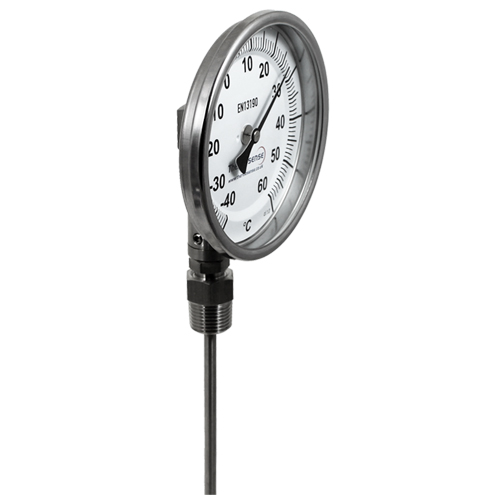

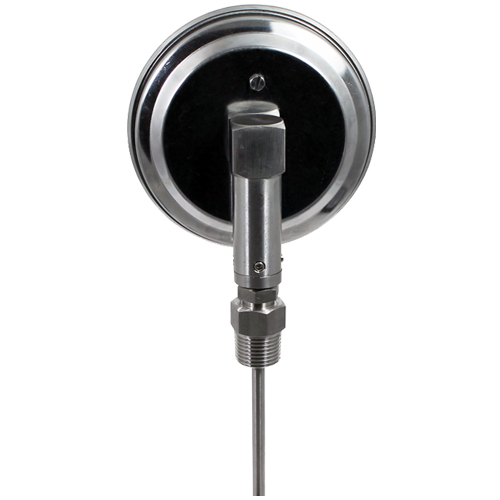

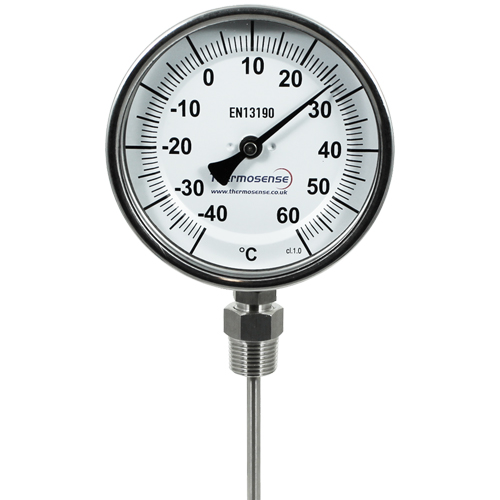

Bi-Metal Dial Thermometer (Fixed Position, Bottom Entry)

Product Code: DB06/060B...DB06/500B

Fixed position, botttom entry 100mm (4 inch) Ø 304 Stainless Steel crimped case dial with a 316 Stainless Steel probe.

The dial has a white background, black markings, black aluminium pointer and shatterproof glass.

The dial thermometers are simple in construction, yet rugged and reliable, offering a fast response with an accuracy conforming to C1.1 EN 13190:2001 and over-range of 125% FSD.

Supplied as standard with a 1/2" BSP tapered compression fitting (other threads available on request).

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Product Options
  • Documents
  • Software
    • Fixed position (bottom entry)
    • 100mm (4 inch) Ø 304 Stainless Steel crimped case dial (IP65)
    • 316 Stainless Steel probe
    • Supplied with 1/2 inch BSP tapered compression fitting
  • Technical Details
    Style Fixed Position
    Entry Bottom Entry
    Dial 100mm (4 inch), white background, black markings
    Pointer Aluminium, black
    Case 304 Stainless Steel, crimped, IP65
    Window Shatterproof glass
    Stem 6mm OD (316 Stainless Steel)
    Fitting 1/2 inch BSPT Stainless Steel Adjustable Compression Fitting (sliding)
    Accuracy As per C1.1 EN 13190:2001
    Over-Range 125% FSD
    Zero Reset External, provided
  • Style Entry Stem Ø Stem Length * Temperature Range Order Code
    Fixed Position Bottom 6.0mm 200mm -40°C to +60°C DB06/060B
    Fixed Position Bottom 6.0mm 200mm 0°C to +120°C DB06/120B
    Fixed Position Bottom 6.0mm 200mm -50°C to +150°C DB06/150B
    Fixed Position Bottom 6.0mm 200mm 0°C to +200°C DB06/200B
    Fixed Position Bottom 6.0mm 200mm 0°C to +300°C DB06/300B
    Fixed Position Bottom 6.0mm 200mm 0°C to +400°C DB06/400B
    Fixed Position Bottom 6.0mm 200mm 0°C to +500°C DB06/500B



    * Stem length = tip to underside of thread
