Black-Body Infrared Calibrator

Product Code: HC-500BB

The HC-500BB compact Infrared Calibrator provides a stable black-body target for calibrating non-contact infrared thermometers (in-line or hand-held) up to +500°C (+932°F).

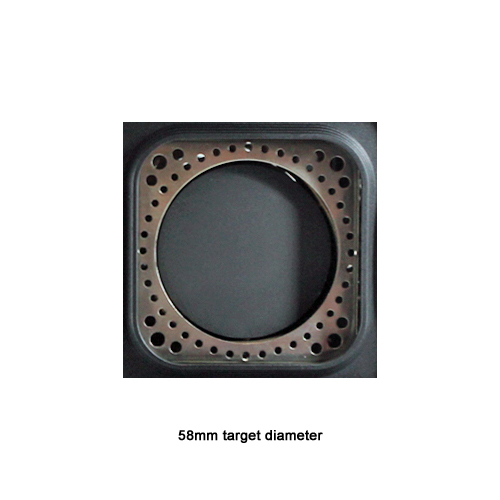

The unit features a large temperature controlled black-body target with a diameter of 58mm (2.25 inches) that offers a wide field of view area for optical variations in infrared thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1° from +50°C to +500°C.

For even higher precision, a contact calibration well is located directly behind the black-body surface (3.1mm diameter). Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1°C can be achieved.

Supplied with instruction manual, power cable and in-house test certificate.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
  • Features

    • Easily calibrate non-contact IR thermometers up to +500°C
    • Large 58mm (2.25 inch) black-body target
    • Contact RTD reference well for higher accuracies of ±0.1°C
    • Fast heating/cooling time
    • Compact size
    • Overload alarm LEDs
  • Technical Specification
    Temperature Range +50°C to +500°C (+122°F to +932°F)
    Resolution 0.1°C/°F
    Accuracy ±0.8°C (up to +100°C), ±1.6°F (up to +212°F)
    ±1.6°C (+100°C to +200°C), ±3.2°F (+212°F to +392°F)
    ±2.8°C (+200°C to +500°C), ±5.6°F (+392°F to +932°F)
    Stability ±0.1°C (up to +100°C), ±0.2°F (up to +212°F)
    ±0.2°C (+100°C to +200°C), ±0.4°F (+212°F to +392°F)
    ±0.4°C (+200°C to +500°C), ±0.8°F (+392°F to +932°F)
    Test Target Diameter 58mm (2.25 inches)
    Contact Well Diameter 3.1mm
    Target Emissivity 0.95
    Heating Time 30 minutes to maximum
    Cooling Time 30 minutes to +100°C (+212°F)
    Power 230 Volts (115 Volts also available)
    Dimensions 114mm (H) x 180mm (W) x 233mm (D)
    Weight ~ 3 kg
