Single Pair Heat Resistant and Flame Retardant PVC Ripcord Thermocouple Cable (-30°C to +105°C)

Product Code: CQ08

The most common and cost effective insulation material. Commonly used for general wiring and in applications where there may be an increased fire/flame risk.

One pair of solid conductors. Each conductor is HR/FR PVC insulated. The pair is laid flat and the core insulation is welded together in a ripcord ‘figure of 8’ construction.

  • Features
  • Technical
  • Documents
  • Software
    • Temperature rated -30°C to +105°C
    • Available in Thermocouple Extension Grades KX, JX, TX
    • Colour coded to IEC 60584.3 (BS EN 60584.3). ANSI MC96.1 colours available on request
    • The most common and cost effective insulation material
  • Conductor Size Dimensions (approximate) Profile KX KCB JX TX NX EX RCA Order Code
    1/0.5mm Ø(0.2mm²) 1.7mm x 3.3mm Figure of Eight Y N Y Y N N N  CQ08
  • No software available

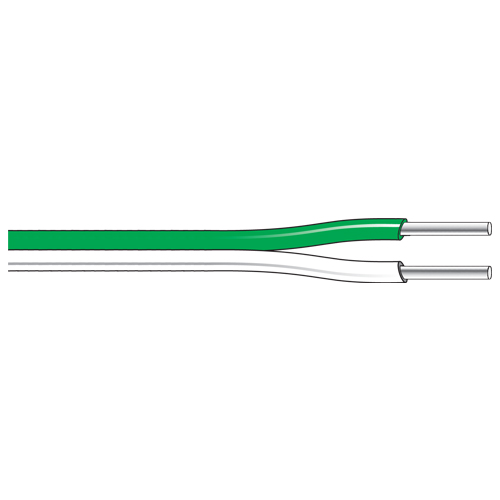

Type KX (green) cable images shown for illustrative purposes only
