Embedded Brake Pad Thermocouple Sensor

Product Code: TE

Designed for embedding into a brake pad to monitor the pad temperature.

Supplied with a fibreglass insulated, stainless steel wire over-braided stranded extension cable, attached to the stainless steel tip using a high temperature, ceramic-based sealant. The sensing junction is grounded for fast response.

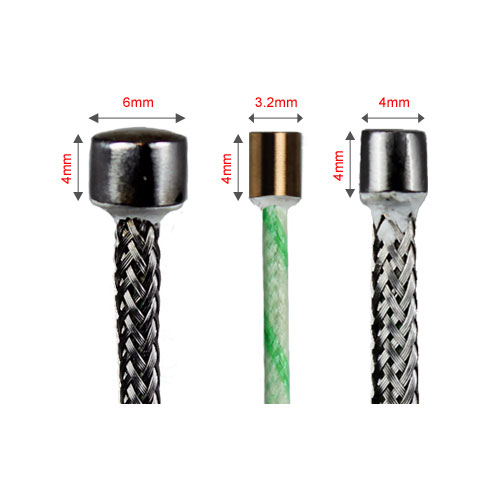

4.0mm tip length as standard, with 6.0mm, 4.0mm or 3.2mm diameter tip options.

Standard cable length is 1 metre, but can be supplied in custom lengths to suit your application.

Suitable for use up to +400°C.

  • Features
  • Technical
  • Documents
  • Software
    • Designed for monitoring brake pad temperatures up to +400°C
    • Thermocouple Types K, J, T, N
    • 4.0mm tip length
    • 6.0mm, 4.0mm or 3.2mm tip diameter
  • Technical Details
    Sensor Type Embedded Brake Pad Thermocouple Sensor
    Conductor/Thermocouple Type Type K, J, T, N
    Tip Diameter 6.0mm
    4.0mm
    3.2mm
    Tip Length 4.0mm
    Cable Fibreglass insulated, stainless steel wire over-braided stranded extension cable (up to +400°C)
    Cable Length As required to suit your application
