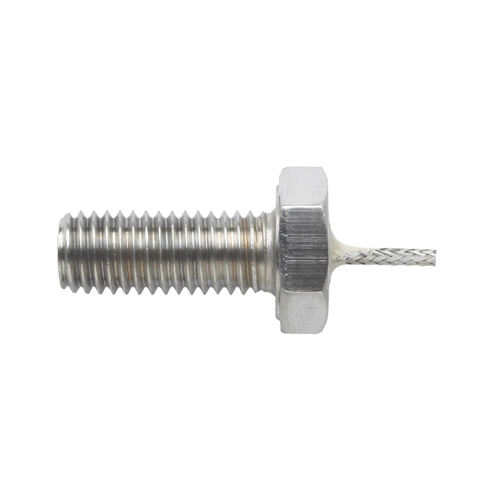

Bolt Thermocouple Sensor

Product Code: TB

Commonly used for surface or vessel measurement. The bolt sensor is generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement.

Supplied with a stranded 7/0.2mm diameter, fibreglass insulated, stainless steel wire-braided cable at any length to suit your application.

Suitable for use up to +250°C.

  • Features
  • Product Options
  • Documents
  • Software
    • Thermocouple types K, J, T
    • Suitable for use up to +250°C
    • Commonly used for surface or vessel measurement
    • M8, M10, M12 bolt thread options available
  • Item Code
    Sensor Type Bolt Thermocouple Sensor TB
    Conductor/Thermocouple Type   Type K K
    Type J  J
    Type T  T
    Bolt Thread M8 x 1mm M8
    M10 x 1mm M10
    M12 x 1mm M12
    Bolt Length (mm) (L1) As required to suit your application e.g. 25
    Sensing Junction  Insulated (isolated, ungrounded), Simplex I
    Grounded (non-isolated, Simplex G
    Cable Length (mm) As required to suit your application e.g. 2000

    Optional Thermocouple Connector

    (supplied attached to cable)

    Miniature Thermocouple Plug (Types K, J, T) FMP
    Standard Thermocouple Plug (Types K, J, T)  RSP



    Order Code (example): TB-K-M10-25-I-2000-FMP
