Standard Ceramic Thermocouple and RTD Connectors

Product Code: RSPC/RSJC

Standard ceramic connectors for thermocouple and RTD circuits. Solid pin design ensures good contact even in demanding applications.

Accepts wires up to 1.6mm (8.0mm cable Ø max).

Ceramic body designed for use at high temperatures.

Temperature rating +650°C max.

  • Features
  • Technical
  • Documents
  • Software

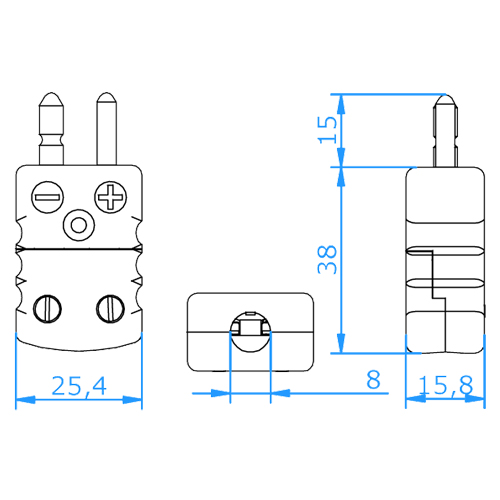

  • Construction

    • Ceramic body with original thermocouple material pins and springloaded inserts
    • Polarized pins ensure proper connection
    • Oversize terminal screw head for easy wiring
    • One body design
    • High purity alumina body material

    Wire Size

    • Accepts wires up to 1.6mm (8.0mm cable Ø max)

    Temperature Rating

    • +650°C Max

    Colour Code

    • White body colour. Calibration code indicated by coloured dot (colour coded to IEC584.3 as standard. ANSI colours also available)
  • Calibration Code K J T N E R/S B C RTD
    Positive Material NiCr Fe Cu NiCrSi NiCr Cu Cu CPX Cu
    Negative Material NiAl CuNi CuNi NiSi CuNi Alloy#11 Cu CNX Cu
    IEC Colour Green Black Brown Pink Violet Orange Grey Red White
    ANSI Colour *  Yellow Black Blue Orange Violet Green Grey Red White
    Plug Order Code ** RSPC-K RSPC-J RSPC-T RSPC-N RSPC-E RSPC-R RSPC-B RSPC-C RSPC-U
    Socket Order Code RSJC-K RSJC-J RSJC-T RSJC-N RSJC-E RSJC-R RSJC-B RSJC-C RSJC-U



    * Suffix order code with 'A' for ANSI colours (e.g. RSPC-KA)

    ** Type C plug only available with hollow pins

  • No software available

Hollow pin connectors also available - contact sales for further information
