Pre-assembled Standard Thermocouple Connector Panels

Product Code: RP

Pre-assembled, robust, standard horizontal panel assemblies for thermocouple and RTD circuits. Ideal for mounting in control rooms, test stands, laboratory applications, pilot plants, etc.

Supplied fitted with RSI standard panel inserts.

For use with the following calibration codes: K, J, T, N, E, R/S, B, C, RTD.

Each panel assembly includes: panel, insert/socket(s) and mounting bar.

Available with 1-24 circuit options.

Temperature rating +200°C max.

  • Features
  • Technical
  • Documents
  • Software
  • Construction

    • 1, 2, 3, 4, 5, 6, 8, 12, 18, 24 circuit options
    • Aluminium front panel anodized for full corrosion protection
    • All circuits indentified with scratchproof numbering
    • Stainless steel bar and brass nickel plated screws
    • Pre-assembled with panel inserts
    • Mounting construction will make it impossible to dislodge insert from panel
    • Angled screws on the insert will allow wiring of the panel after mounting
    • Flush surface for easy cleaning

    Wire Size

    • Accepts wires up to 1.6mm

    Temperature Rating

    • +200°C Max
  • Circuits Rows Panel Dimensions Panel Cut-out Dimensions Order Code
    (L x H) mm (L x H) mm
    1 1 38 x 38 31 Ø RP01-x
    2 1 70 x 67 40 x 40 RP02-x
    3 1 89 x 67 49 x 40 RP03-x
    4 1 108 x 67 78 x 40 RP04-x
    5 1 127 x 67 97 x 40 RP05-x
    6 1 146 x 67 116 x 40 RP06-x
    8 1 184 x 67 154 x 40 RP08-x
    12 1 260 x 67 230 x 40 RP12-x
    18 1 374 x 67 344 x 40 RP18-x
    24 2 260 x 115 230 x 88 RP24-x



    x = calibration code

  • No software available

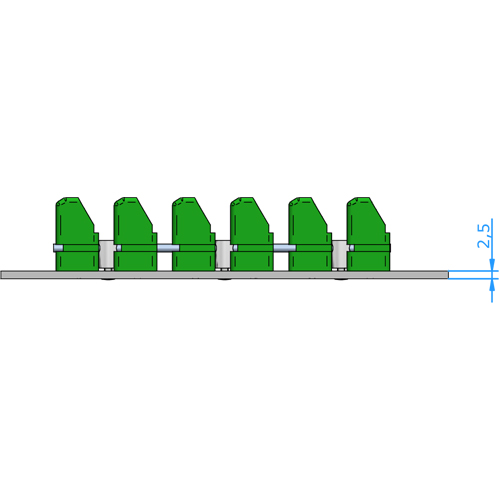

IEC Type K (green) images shown for illustrative purposes only

Note: panel assembly includes panel, insert/socket(s) and mounting bar
