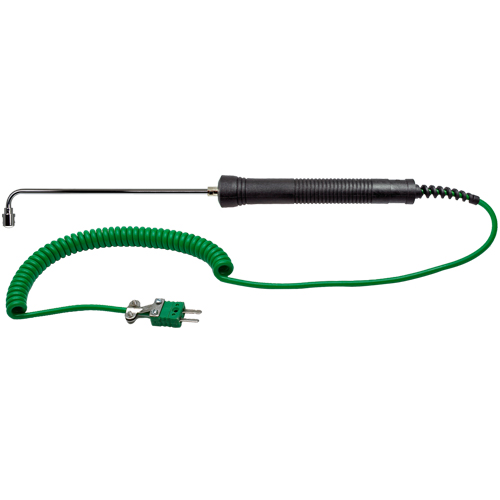

Hand-held Type K 90º Surface Measurement Sensor 150mm 6.4mm Ø (+400ºC)

Product Code: HK-500

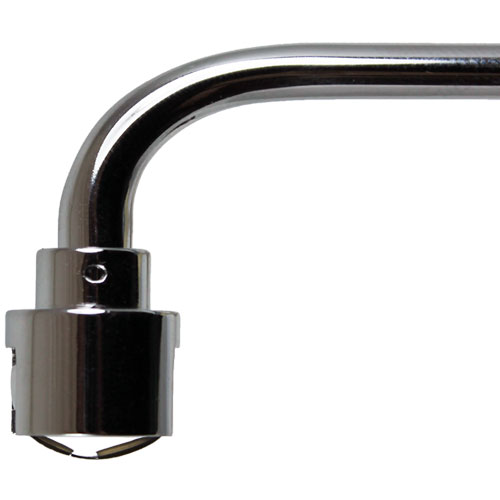

The HK-500 sensor has a 90° angled tip (standard tip) which can make it more suitable for measuring applications within restricted spaces. A thermocouple ribbon on the stem tip provides a quick speed of response when pushed onto a measuring surface.

Stem rated for use up to +400°C. The plastic handle is rated up to +135°C.

Supplied with 1 metre of coiled extension cable with a Type K miniature flat pinned plug attached.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
    • 90° angled tip (standard tip)
    • Stem rated up to +400°C, handle rated up to +135°C
    • 6.4mm Ø stem, 16mm Ø tip
  • Technical Details
    Stem Temperature Rating
    Up to +400°C
    Handle Temperature Rating (Plastic)
    Up to +135°C
    Stem Diameter 6.4mm

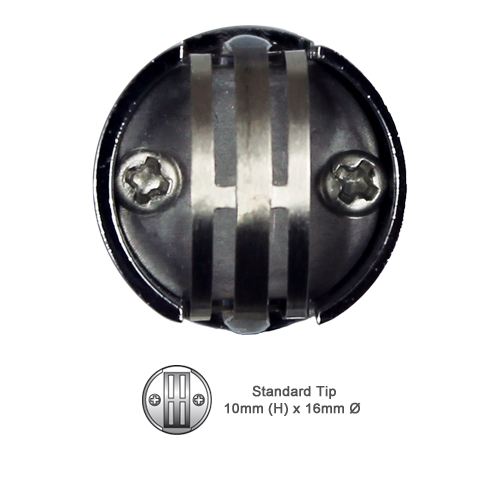

    Tip/Pot Dimensions 10mm (H) x 16mm Ø
    Stem Length (Nominal) 150mm (handle to bend) x 48mm (bend to tip)
    Standard/Heavy Duty Tip Standard



  • No software available
