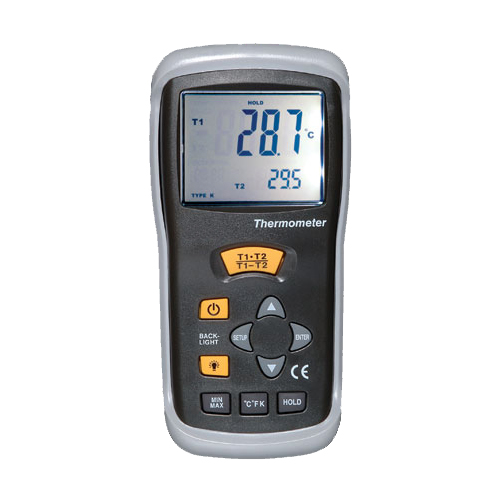

High Accuracy Type K Thermocouple Indicator (2 Channel)

Product Code: HH-613

High accuracy, 2 channel, hand-held Type K Thermocouple indicator with a measurement range of -200°C to +1372°C (-328°F to +2501°F).

Clear 3½ digit LCD display with back light. T1, T2, T1-T2, Min, Max, Avg and Hold functions.

Supplied with removable rubber protective holster, canvas carrying case and 9V battery.

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Technical
  • Documents
  • Software
    • Type K thermocouple input
    • °C / °F / K selectable
    • Backlit 3½ digit LCD display
    • Min, Max, Avg, Data hold, Diff (T1-T2)
    • Auto power off

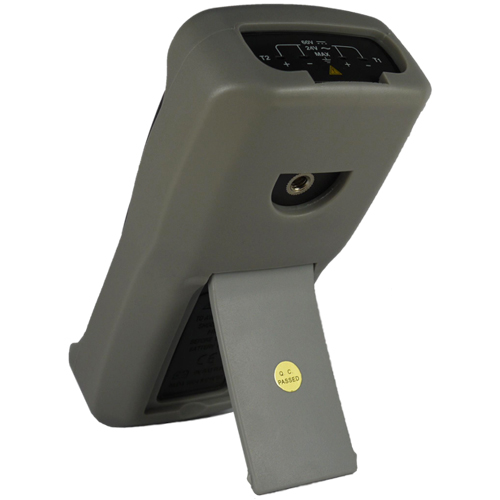

    • Removable rubber protective holster, tilt stand
    • Supplied with canvas carry case and battery
  • Technical Details

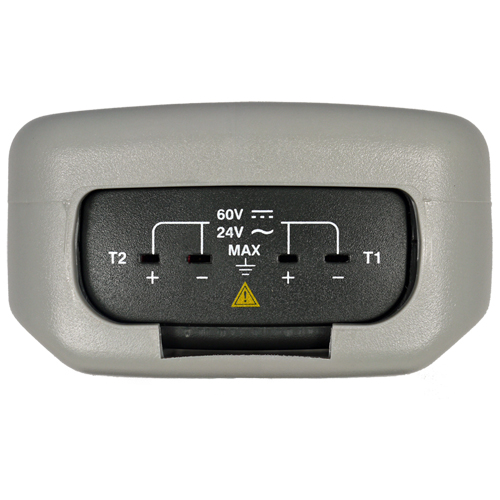

    Input (miniature plug) * 2 x Type K Thermocouple
    Measurement Range -200°C to +1372°C, -328°F to +2501°F
    Resolution  0.1°C/°F/K (< +1000°C)
    1°C/°F/K (> +1000°C)
    Accuracy   T1, T2 above -100°C ±0.15% of reading +1°C (+1.8°F)
    T1, T2 below -100°C ±0.5% of reading +2°C (+3.6°F)
    T1-T2 ±0.5% of reading +1°C (+1.8°F)
    Measurement Cycle 2.5 times per second
    Display Backlit 3½ digit LCD display (max. reading of 1999)
    Operating Temperature 0°C to +50°C (storage temperature -10°C to +50°C)
    Power 1 x 9V battery (supplied)
    Dimensions Without holster: 165mm (H) x 76mm (W) x 43mm (D)
    Weight 323g (without holster)



    * Thermocouple sensor(s) not supplied - available separately

  • No software available
