2-in-1 Selectable Point Type K Simulator

Product Code: HC-920K

This 2-in-1 meter will simulate a Type K Thermocouple output between the ranges -199°C and +1230°C. The output can be used to calibrate and check instruments that are configured to accept Type K thermocouples. The instrument can also be used as a hand-held indicator to display the temperature of a Type K sensor. The microprocessor circuit provides a high accuracy output and reliable performance.

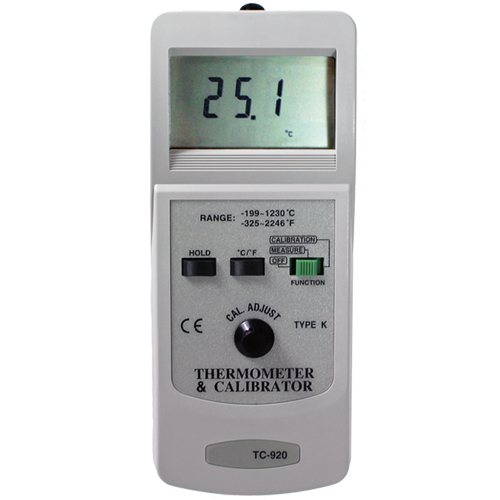

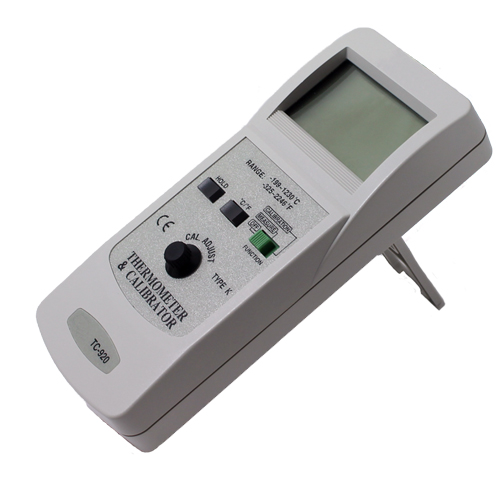

The HC-920K is very easy to use, incorporating a tilt stand and large easy-to-read display (selectable between °C and °F).

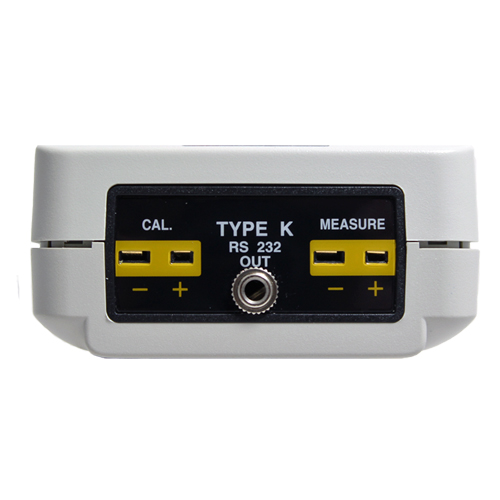

Supplied with instruction manual and coiled cable containing a miniature plug connection at each end. The HC-920K incorporates an output port on top of the unit that enables communication with a computer and specialist software via an RS-232 or USB cable (available as optional accessories).

This product can be supplied with a calibration certificate. Contact sales for further information. This product can be supplied with a calibration certificate. Contact sales for further information.
  • Features
  • Product Options
  • Technical
  • Documents
  • Software
    • Easy to use
    • Large display
    • Selectable between °C and °F
    • Supplied with instruction manual and coiled cable containing a miniature plug connection at each end
    • Optional accessories available
  • Optional Accessory Order Code
    Software HC-920-SW
    USB cable HC-920-USB
    RS232 cable HC-920-RS
  • Technical Details
    Output Type K simulation
    Input Type K Thermocouple
    Range -199.9°C to +1230°C (-325°F to +2246°F)
    Sampling 1 second
    Polarity '-' indicates negative polarity
    Ambient Operating Temperature 0 to +50°C
    Humidity Less than 80% RH
    Power Supply 1 x 9V battery (supplied)
    Dimensions 185mm (H) x 78mm (W) x 38mm (D)
    Weight 225g (without battery)



    Calibrator Range Resolution Accuracy
    -199.9°C to -100.1°C 0.1 ±1.0% +1.0°C
    -100.0°C to +999.9°C 0.1 ±0.5% +1.0°C
    +1000°C to +1230°C 1.0 ±0.5% +1.0°C
  • No software available
