Miniature 3-Pin Thermocouple and RTD Connectors

Product Code: FMPT/FMJT

Miniature 3-pin connectors for thermocouple and RTD circuits. Flat pin design.

Accepts wires up to 0.6mm (4.5mm cable Ø max).

Suitable for small wires and mineral insulated cables.

Third connection for ground, or continuous shield connection, or for 3-wire RTD’s.

Temperature rating +200°C max.

  • Features
  • Technical
  • Documents
  • Software

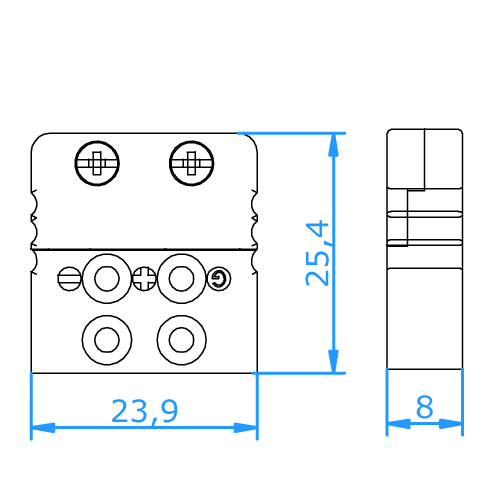

  • Construction

    • Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts
    • Polarized pins ensure proper connection
    • Easy wire connection through sandwich construction
    • Moulded barriers prevent short circuit
    • Rugged one body design

    Wire Size

    • Accepts wires up to 0.6mm (4.5mm cable Ø max)

    Temperature Rating

    • +200°C Max

    Colour Code

    • Colour coded to IEC 60584.3 as standard. ANSI colours also available
  • Calibration Code K J T N E R/S B C RTD
    Positive Material NiCr Fe Cu NiCrSi NiCr Cu Cu CPX Cu
    Negative Material NiAl CuNi CuNi NiSi CuNi Alloy#11 Cu CNX Cu
    IEC Colour Green Black Brown Pink Violet Orange Grey Red White
    ANSI Colour *  Yellow Black Blue Orange Violet Green Grey Red White
    Plug Order Code FMPT-K FMPT-J FMPT-T FMPT-N FMPT-E FMPT-R FMPT-B FMPT-C FMPT-U
    Socket Order Code FMJT-K FMJT-J FMJT-T FMJT-N FMJT-E FMJT-R FMJT-B FMJT-C FMJT-U



    * Suffix order code with 'A' for ANSI colours (e.g. FMPT-KA)
