Miniature Flanged Panel Insert

Product Code: FMF

Easy-to-install miniature flanged panel insert/socket for Thermocouple and RTD circuits. Flat pin design. Ideal for instrument cases.

Mounting by means of stainless steel bracket and two screws or with a stainless steel clip-spring (both types supplied).

Accepts wires up to 0.6mm.

Specially designed to be used together with Hamitherm panels.

Temperature rating +200°C max.

  • Features
  • Technical
  • Documents
  • Software
  • Construction

    • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts
    • Polarized pins ensure proper connection
    • Easy wire connection through sandwich construction
    • Moulded barriers prevent short circuit
    • Rugged one body design
    • Polarity indication on body
    • Stainless steel bracket and screws or stainless steel clip-spring mounting options (supplied)
    • Panel cut-out: 8.1mm x 16.1mm

    Wire Size

    • Accepts wires up to 0.6mm

    Temperature Rating

    • +200°C Max

    Colour Code

    • Colour coded to IEC584.3 as standard. ANSI colours also available
  • Calibration Code K J T N E R/S B C RTD
    Positive Material NiCr Fe Cu NiCrSi NiCr Cu Cu CPX Cu
    Negative Material NiAl CuNi CuNi NiSi CuNi Alloy#11 Cu CNX Cu
    IEC Colour Green Black Brown Pink Violet Orange Grey Red White
    ANSI Colour * Yellow Black Blue Orange Violet Green Grey Red White
    Order Code FMF-K FMF-J FMF-T FMF-N FMF-E FMF-R FMF-B FMF-C FMF-U



    * Suffix order code with 'A' for ANSI colours (e.g. FMF-KA)

  • No software available

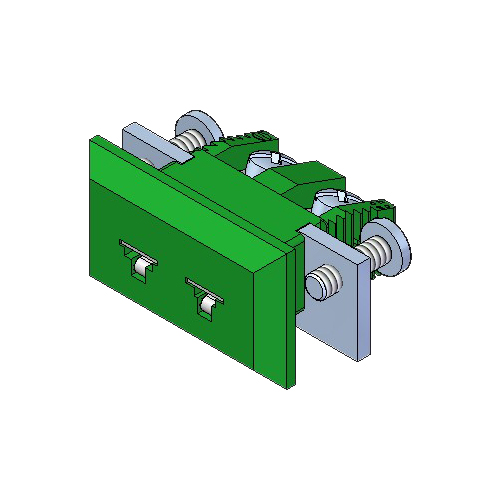

IEC Type K (green) image shown for illustrative purposes only
